X952F

Tesla Part Number

1067989-00-A

Connector

MOLEX 33472-1606

Color

BK

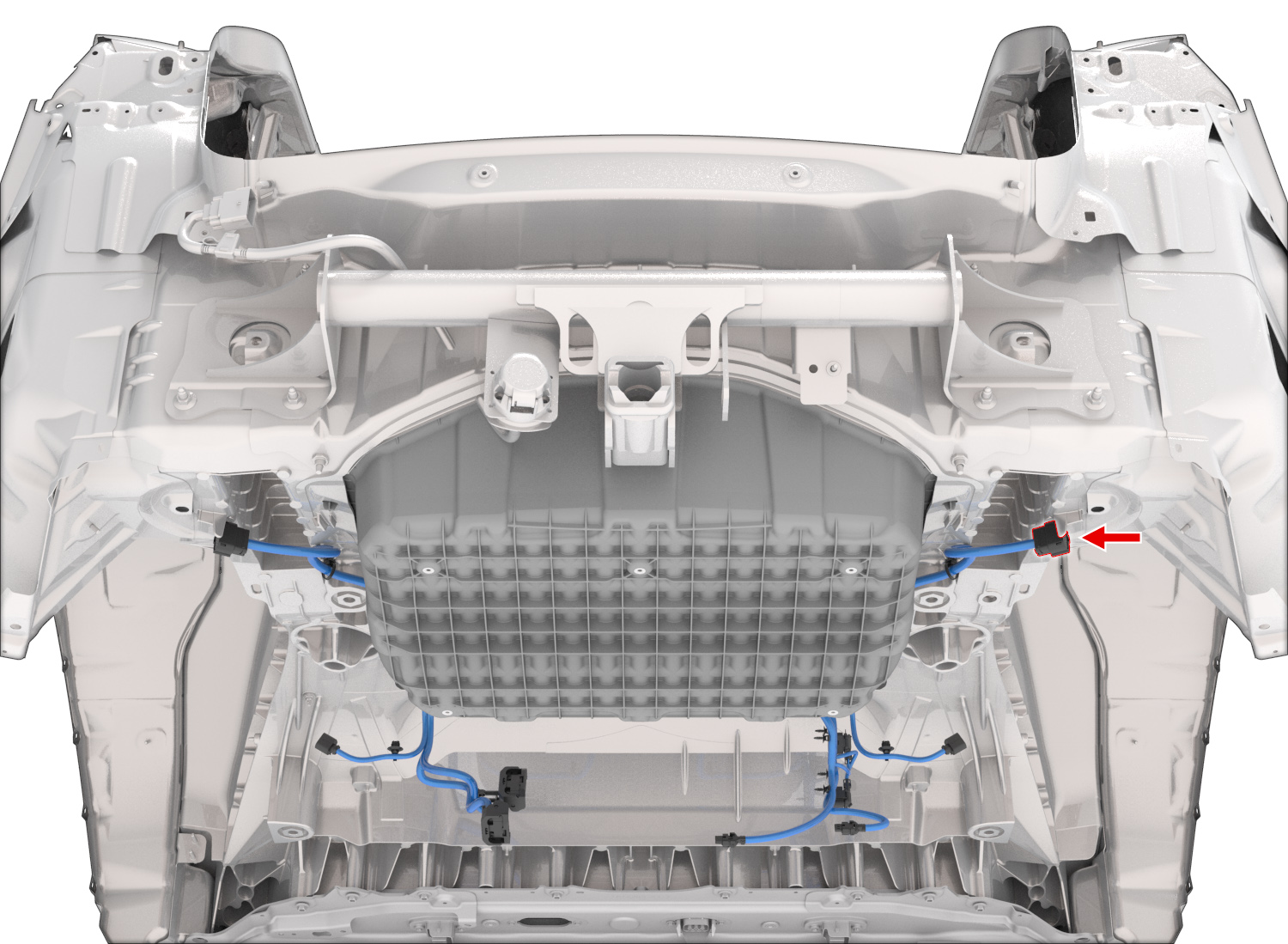

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	MOLEX	33012-3004	1.5x0.8F	TN	0.35	TESLA	MAT-120-240	X156	1
3	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X156	2
4	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X157	1
5	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X157	2
6	MOLEX	33012-3004	1.5x0.8F	BN/WH	0.35	TESLA	MAT-120-240	X090	12
7	MOLEX	33012-3004	1.5x0.8F	BN	0.35	TESLA	MAT-120-240	X090	2
8	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X090	23
9	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X090	4
10	MOLEX	33012-3002	1.5x0.8F	RD	1.00	TESLA	MAT-120-240	X092	1
11	MOLEX	33012-3004	1.5x0.8F	BN	0.35	TESLA	MAT-120-240	X086	3
12	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X086	2
13	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X086	1
14	MOLEX	33012-3004	1.5x0.8F	BK	0.35	TESLA	MAT-120-240	X090	13
15	unused
16	unused
