X954F

Tesla Part Number

1042583-01-A

Connector

SUMITOMO 6098-3926

Color

BK

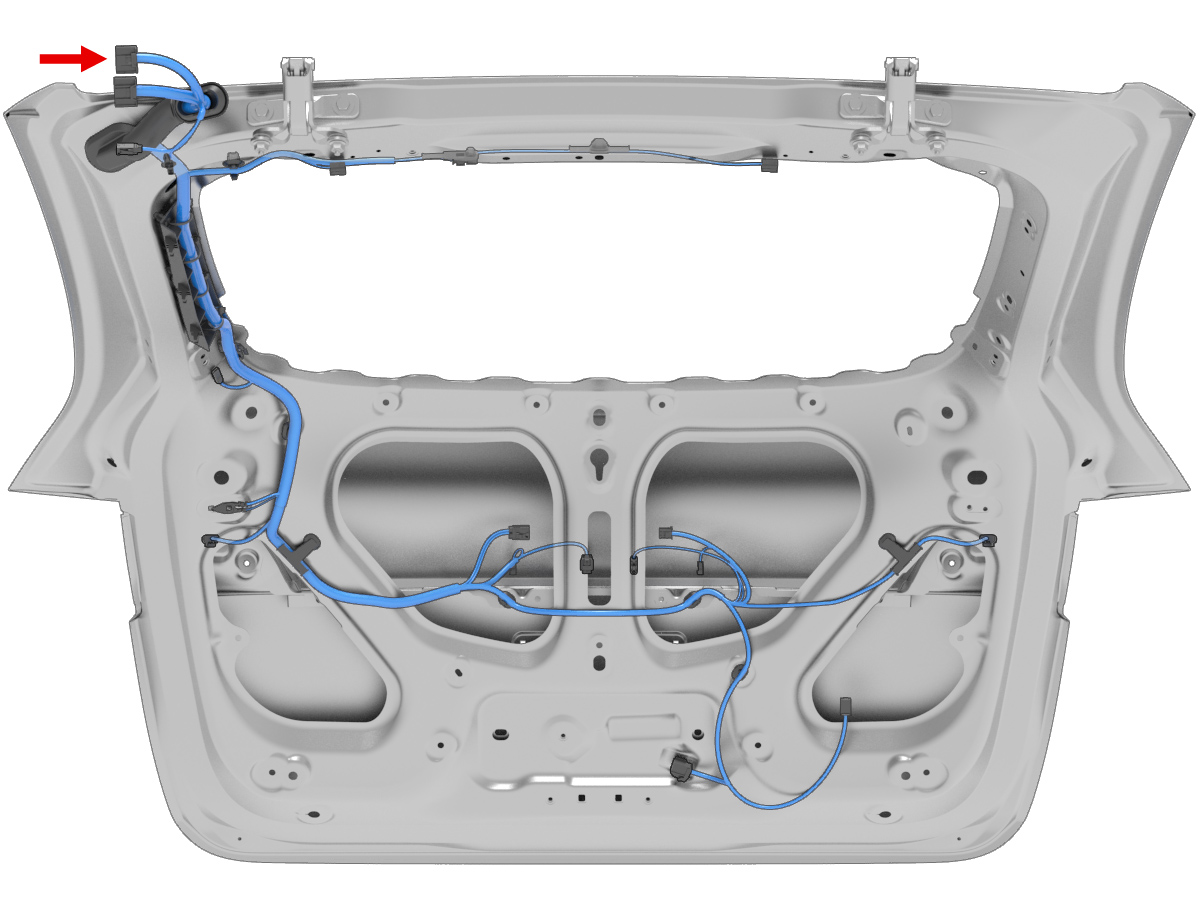

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X271A	3
2	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X273A	3
3	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X274	1
4	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X347	1
5	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X955F	1
6	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X955F	2
7	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X955F	7
8	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X340	1
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X340	2
10	unused
11	unused
12	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35
13	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X340	6
14	unused
15	unused
16	unused
17	unused
18	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X271A	2
19	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X273A	2
20	unused
21	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X273A	4
22	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X271A	4
