X955M

Tesla Part Number

1042577-00-A

Connector

SUMITOMO 6098-3869

Color

WH

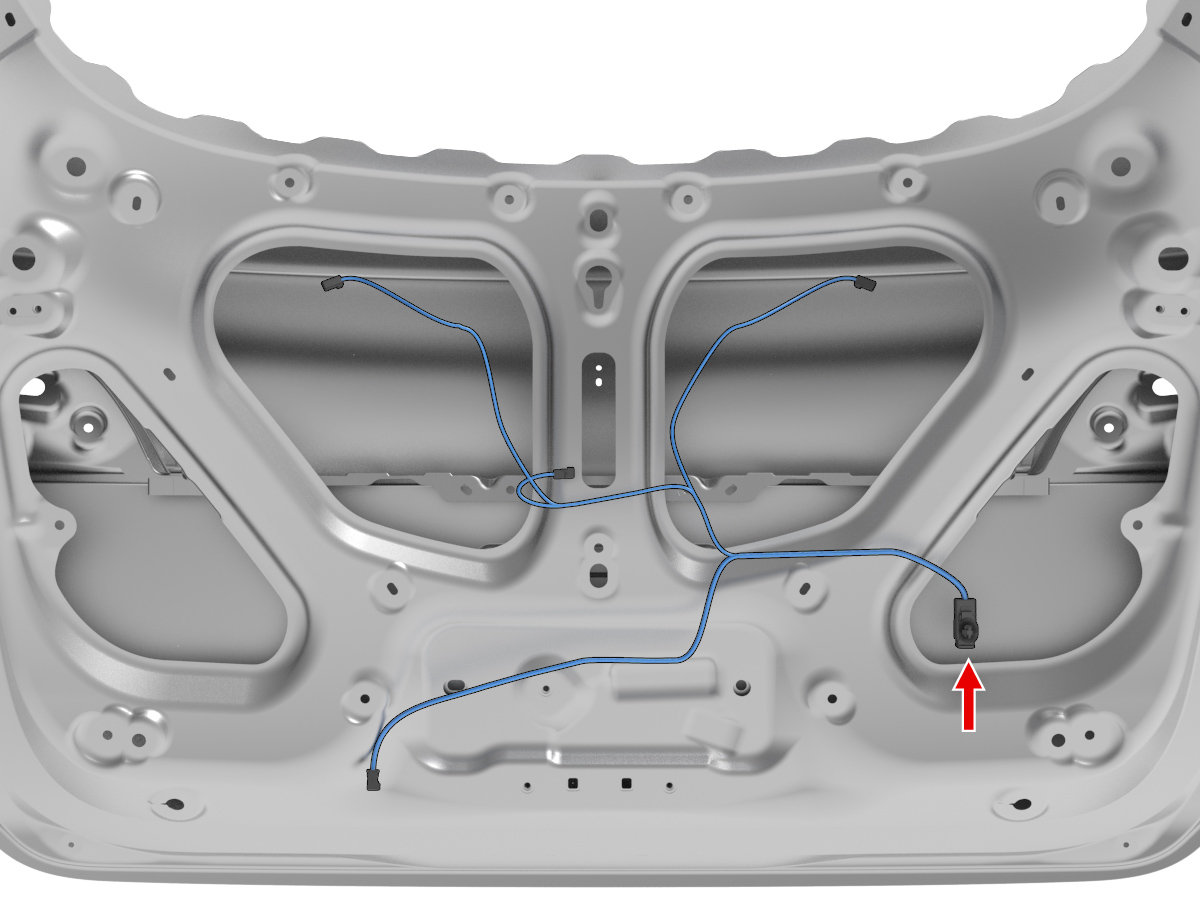

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X348	3
2	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X348	1
3	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X593	1
4	SUMITOMO	8100-3623	0.64x0.64M	YE	0.50			X593	2
5	SUMITOMO	8100-3623	0.64x0.64M	VT	0.50			X588	1
6	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X588	2
7	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X282	1
8	unused
9	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			X348	2
10	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			X282	2
