X981F

Tesla Part Number

1042621-02-A

Connector

SUMITOMO 6098-5629

Color

BU

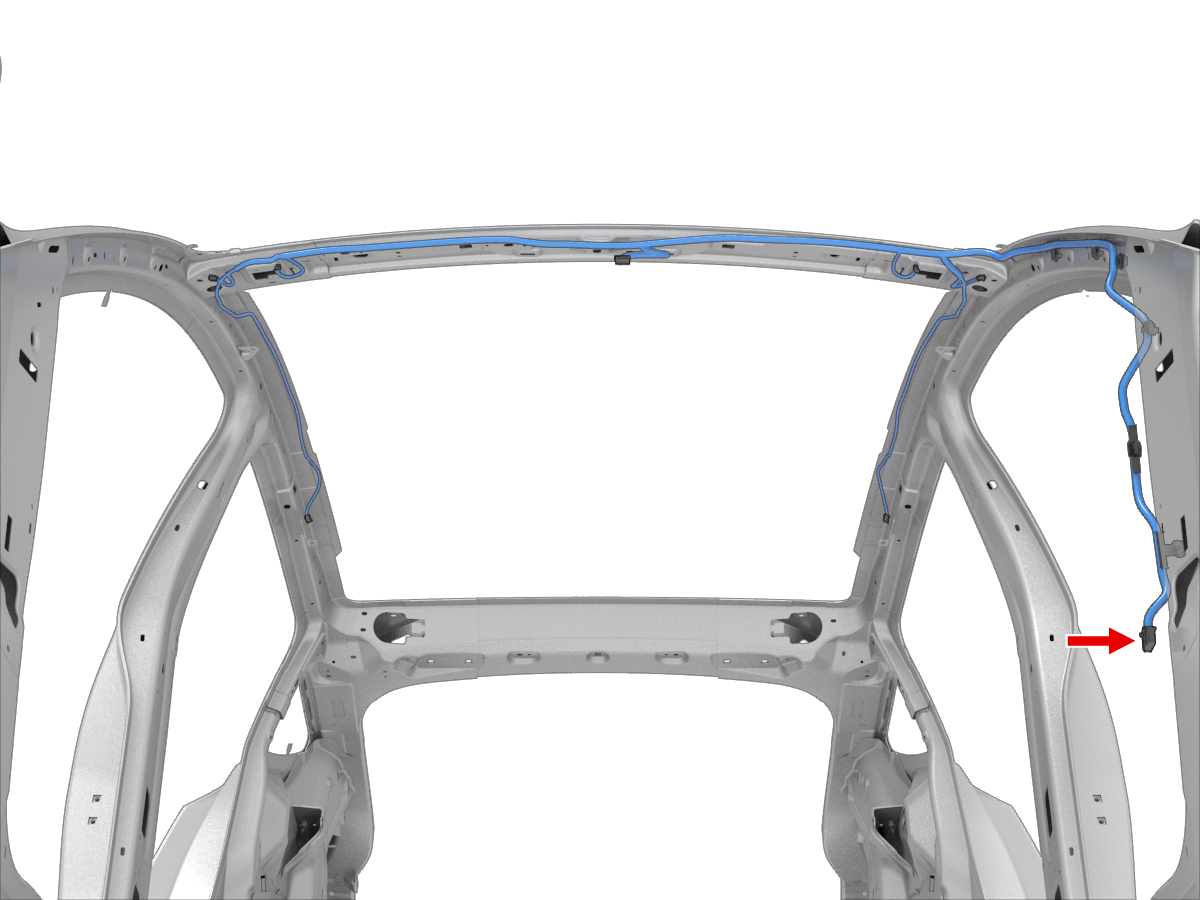

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X569	1
4	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X569	2
5	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50			X579	1
6	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X579	2
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X299	17
8	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X299	19
9	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X299	20
10	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X299	18
11	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35			X299	2
12	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X299	12
13	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X299	15
14	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X299	16
15	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X299	14
16	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X299	16
17	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X299	6
18	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X299	7
19	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X299	1
20	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X299	8
