X070

Tesla Part Number

1047432-00-A

Connector

SUMITOMO 6098-4740

Color

WH

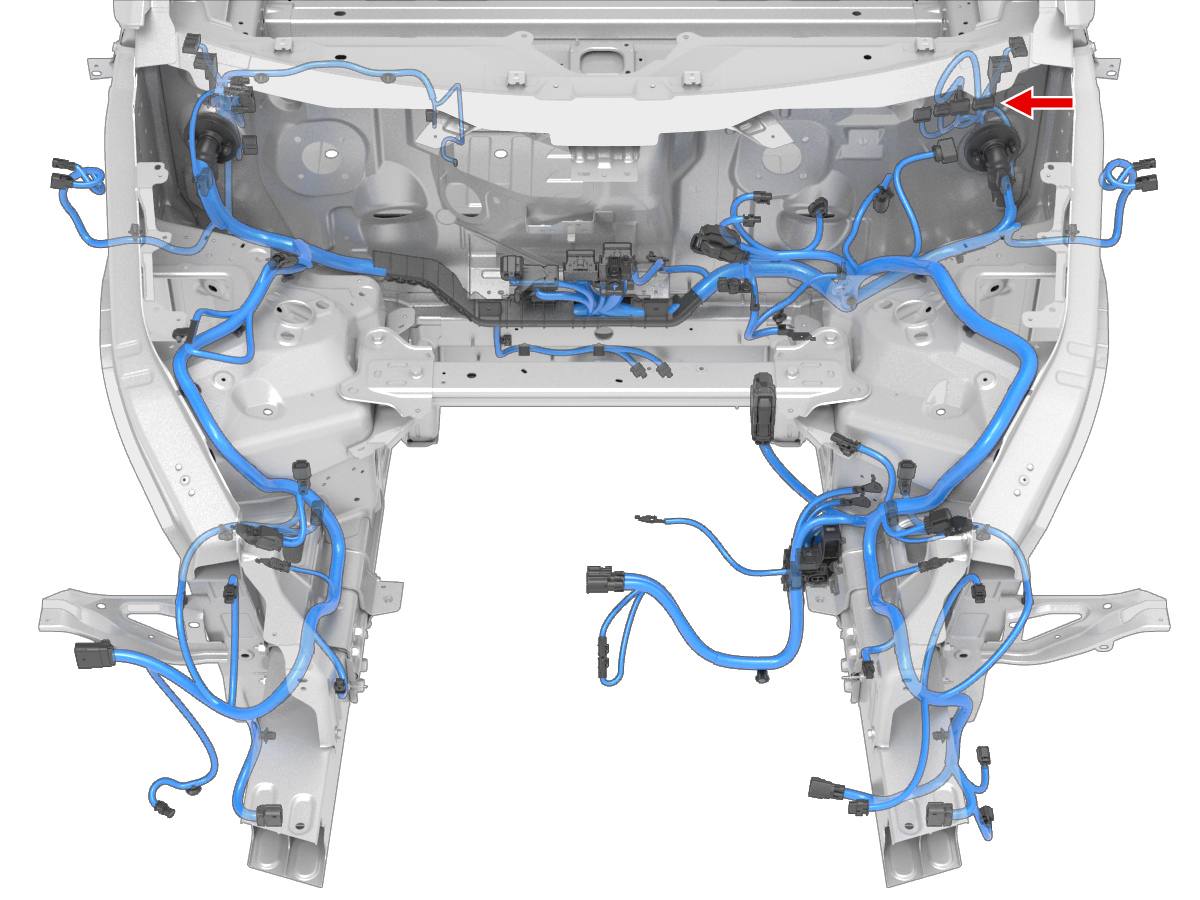

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X084	3
2	unused
3	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X908M	7
4	unused
5	unused
6	unused
7	unused
8	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X912F	11
9	unused
10	unused
11	unused
12	unused
13	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X083	3
14	unused
15	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X037	24
16	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X084	2
17	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X084	1
18	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X908M	9
19	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X908M	8
20	unused
21	unused
22	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X912F	13
23	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X912F	12
24	unused
25	unused
26	unused
27	unused
28	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35
29	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35
30	unused
31	unused
32	unused
33	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X083	2
34	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X083	1
35	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X037	10
36	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X037	25
