X174

Tesla Part Number
1047382-00-A
Connector
AMP 936289-5
Color
WH

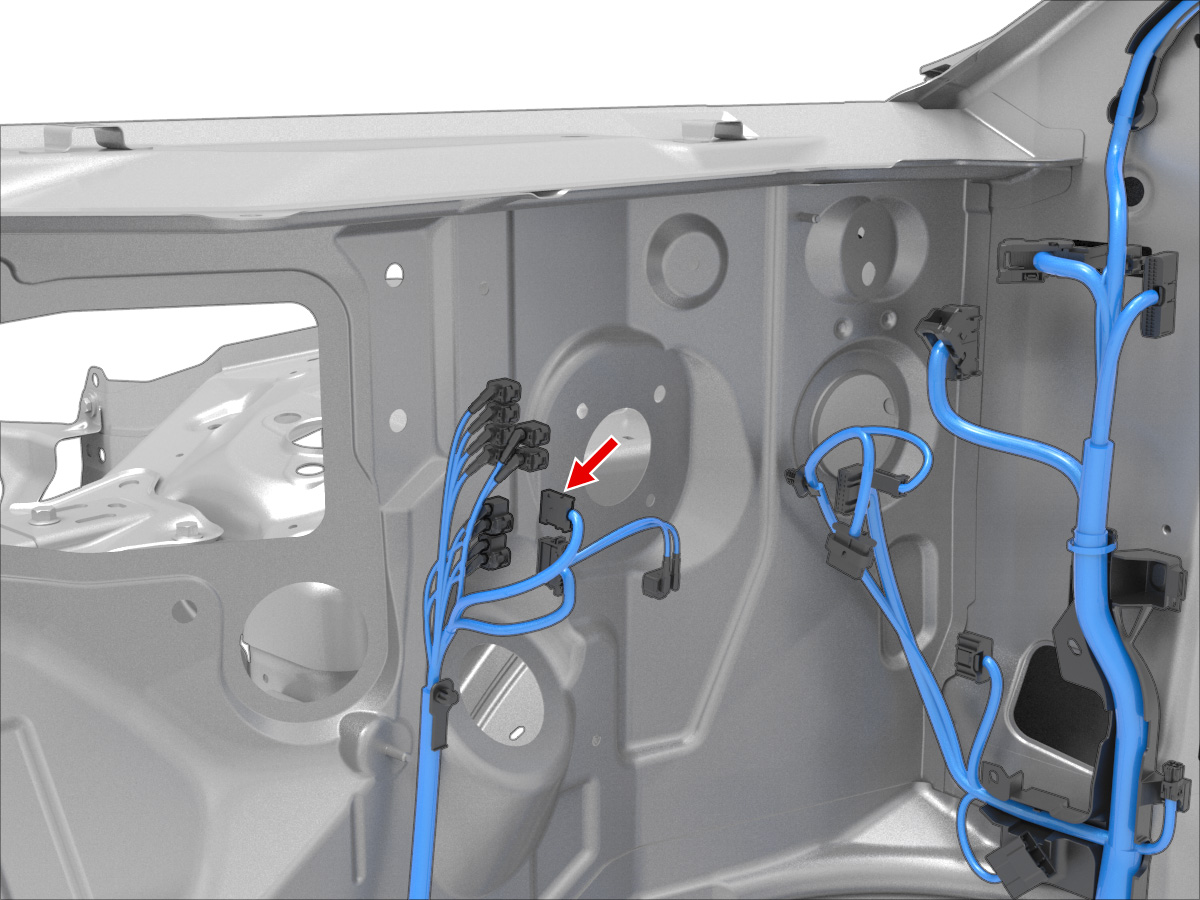

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1unused
2unused
3unused
4AMP5-928999-10.63x0.63FGN0.35X935F34
5AMP5-928999-10.63x0.63FYE0.35X935F33
6AMP5-928999-10.63x0.63FVT0.35X935F35
