X181

Tesla Part Number

1473341-00-A

Connector

AMP 179631-2

Color

BK

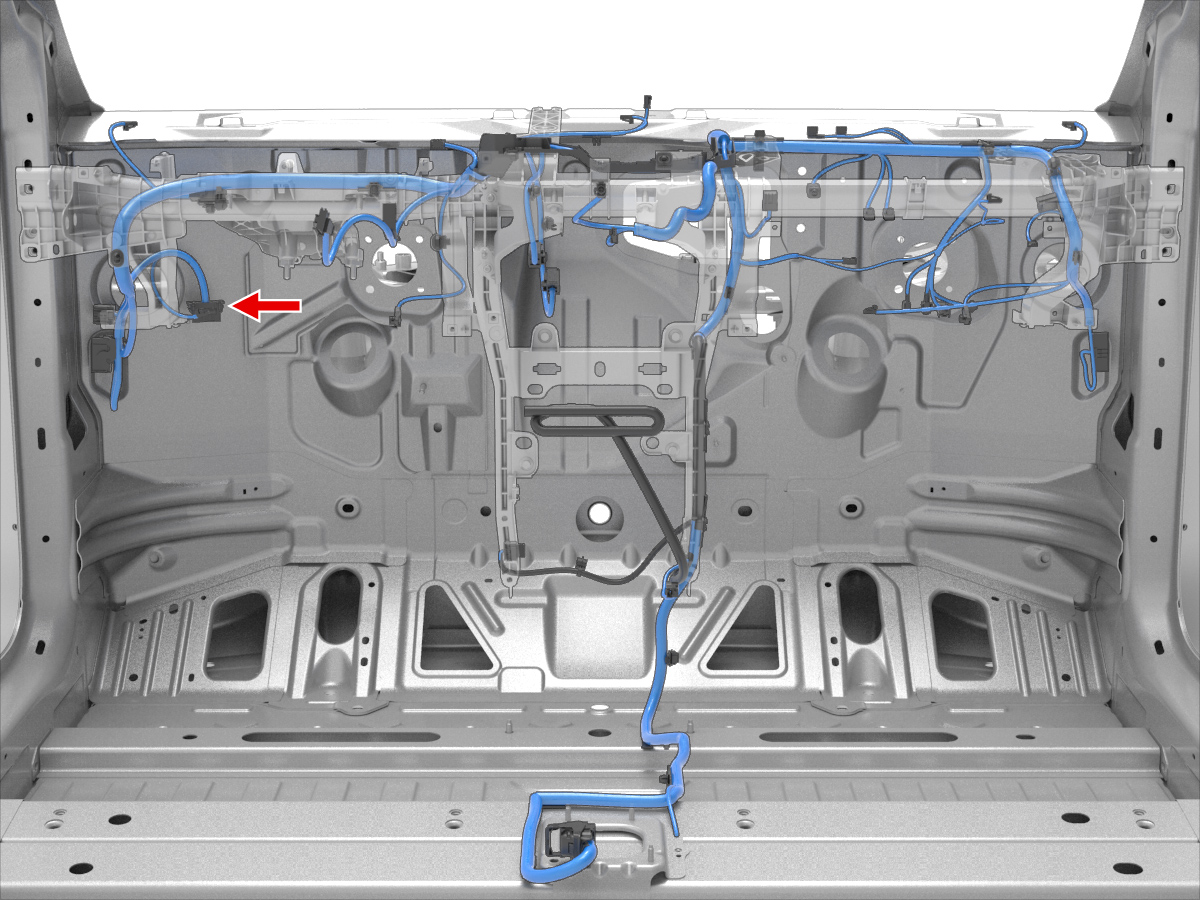

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	AMP	776001-1	1.5	GN	0.35			X035	34
4	AMP	776001-1	1.5	BK	0.50
5	AMP	776001-1	1.5	BK	0.50
6	AMP	776001-1	1.5	BN	0.35			X035	30
7	unused
8	unused
9	unused
10	unused
11	AMP	776001-1	1.5	YE	0.35			X035	45
12	unused
13	unused
14	AMP	776001-1	1.5	VT	0.35			X035	14
15	unused
16	AMP	776001-1	1.5	RD	0.35			X035	33
