X304A

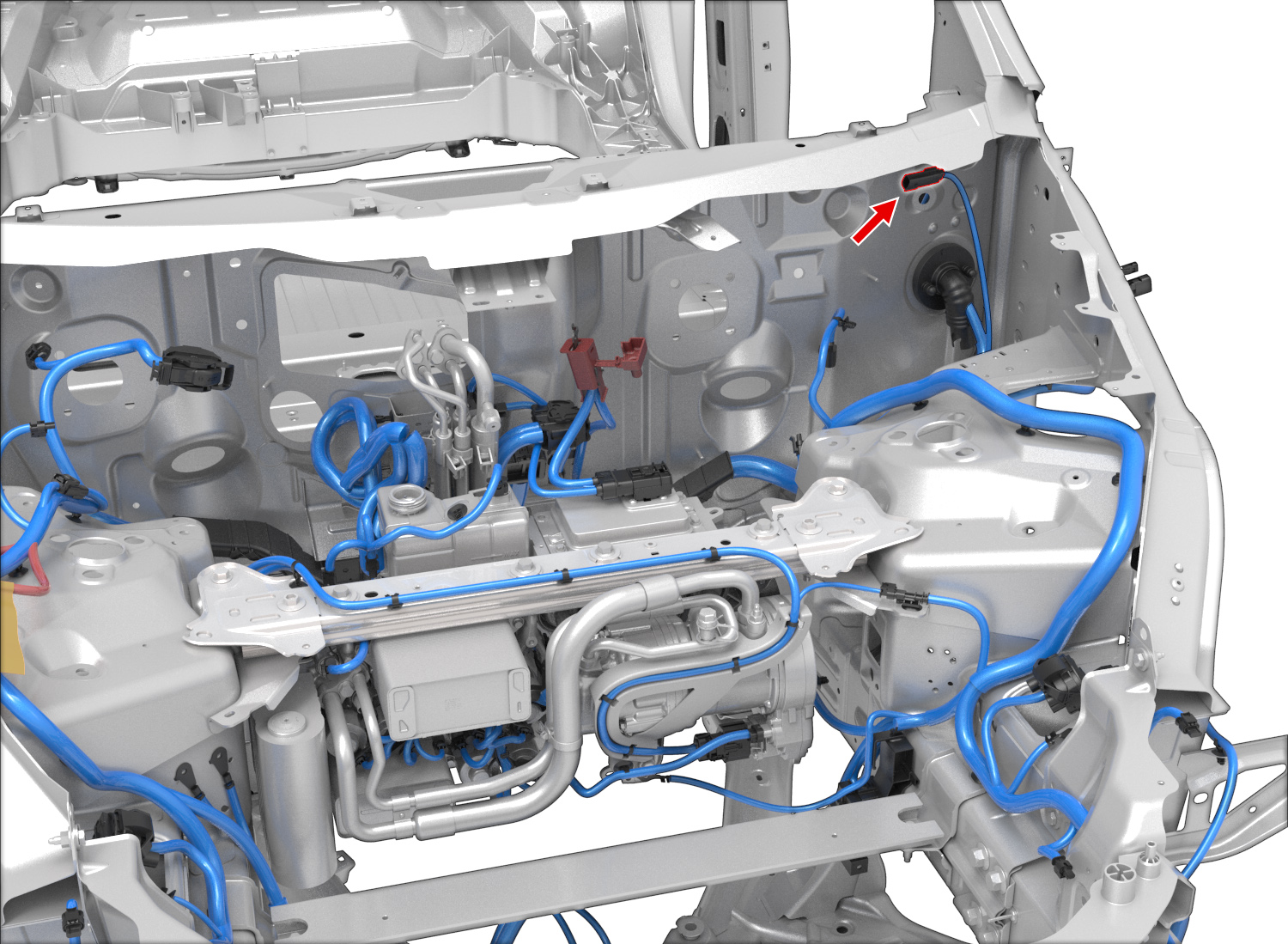

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1718758-1 | 1.2X0.6MS | YE | 0.35 | AMP | 967067-2 | X010 | 90 |
| 2 | AMP | 1718760-1 | 1.2X0.6MS | BK | 0.50 | AMP | 967067-1 | G011 | 8 |
