X470

Tesla Part Number
1080929-00-A
Connector
JST SQFR-02H-1A-Y
Color
YE

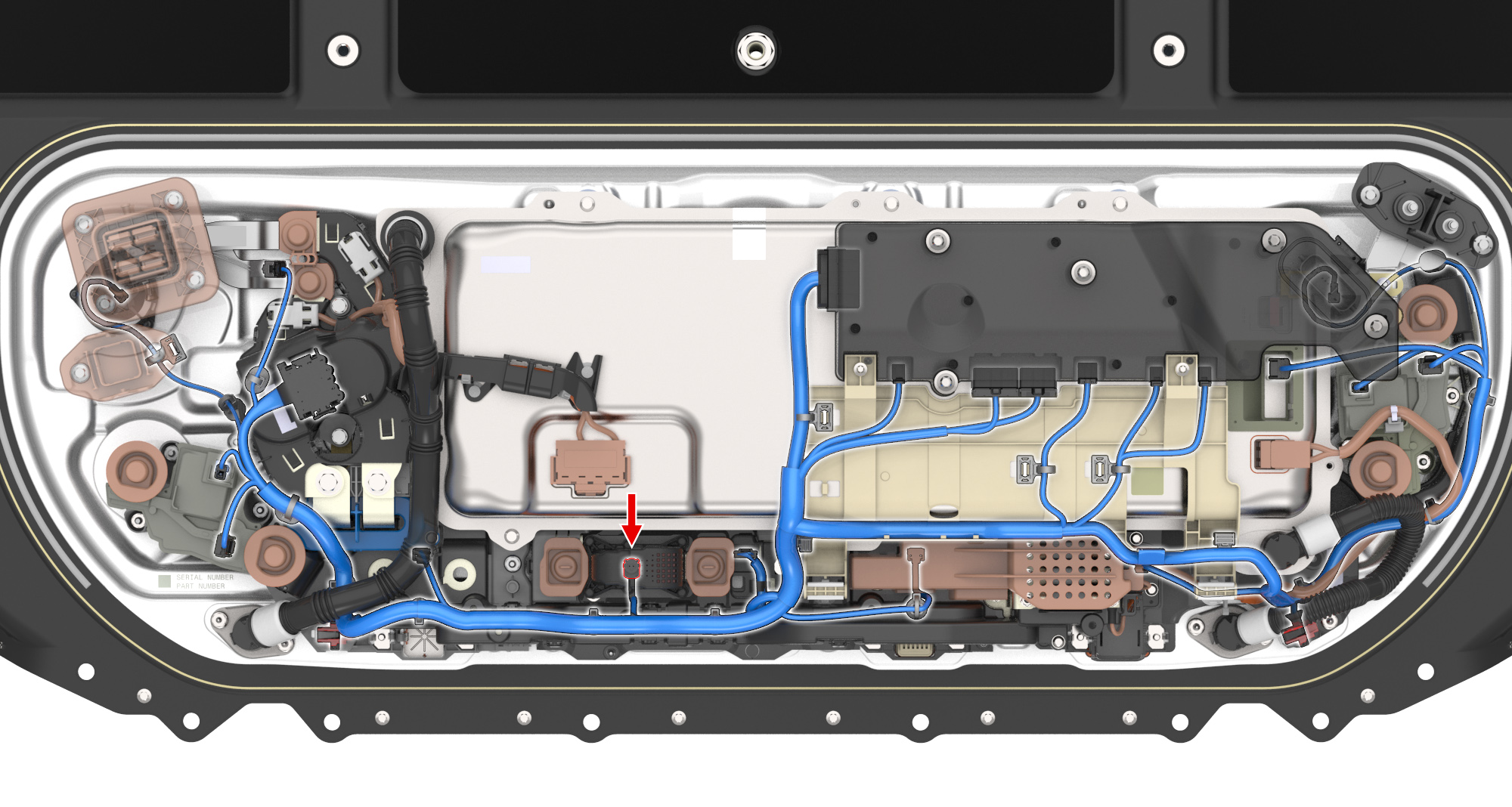

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1JSTSSQF-A03GF-P-PSQUIBWH0.35X4841
2JSTSSQF-A03GF-P-PSQUIBWH0.35X4842
