G032

Tesla Part Number

1549185-00-A

Connector

SUMITOMO 6098-8536

Color

NA

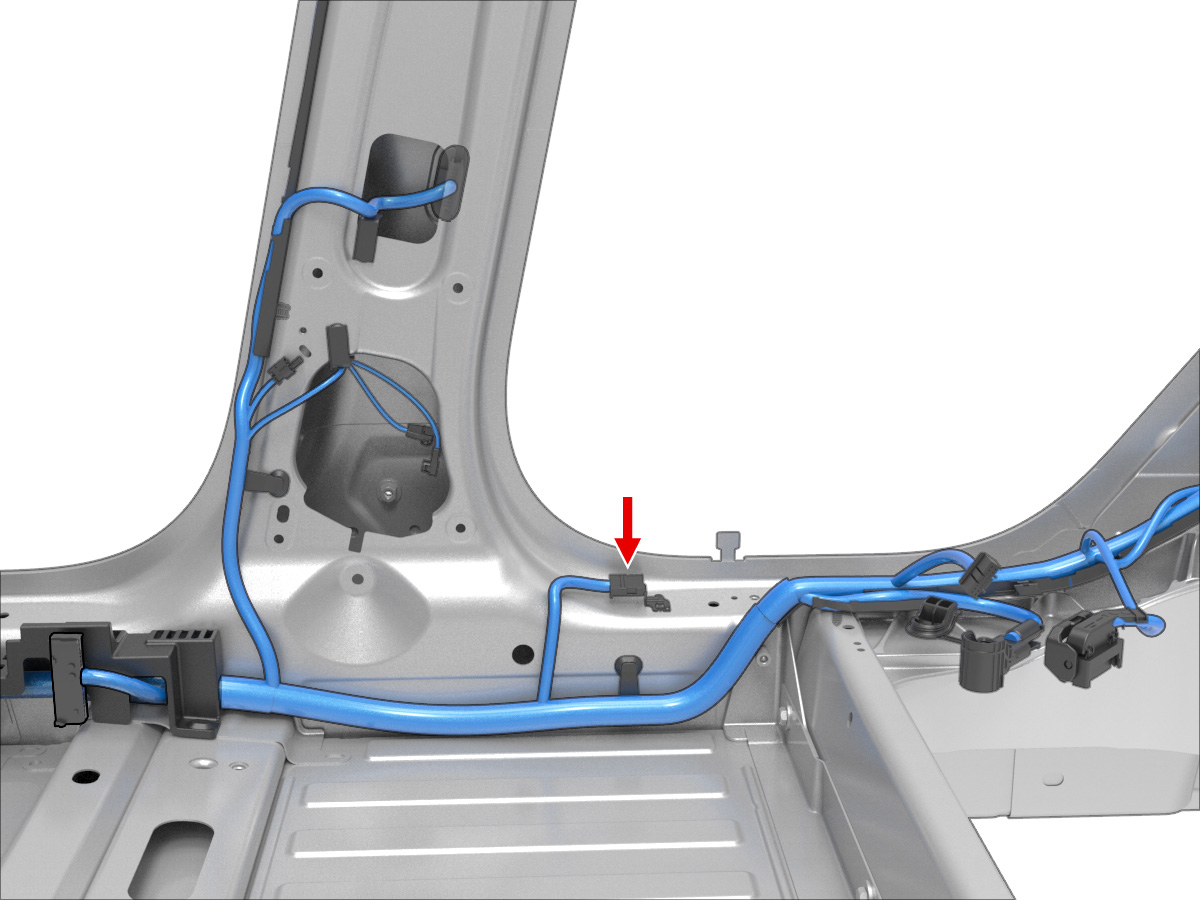

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0213	1.5x0.64F	BK	0.75			X098	9
2	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X494	2
3	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X952M	14
4	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X942F	18
5	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X272	1
6	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X168A	1
7	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00			X165A	2
8	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X179	20
9	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X942F	12
10	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00			X946M	8
11	unused
12	unused
