X055

Tesla Part Number

1043175-00-A

Connector

SUMITOMO 6098-4831

Color

WH

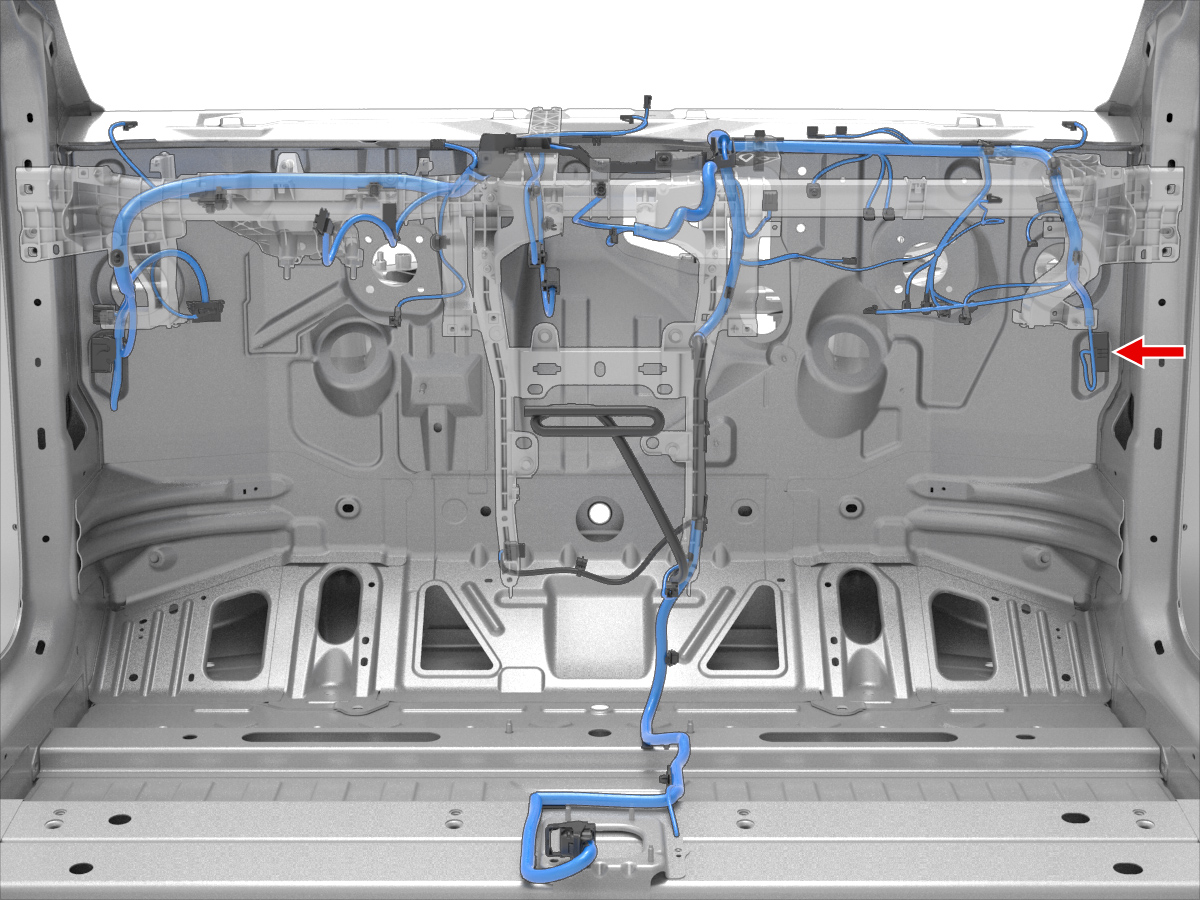

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X200	38
2	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X558	4
3	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X558	5
4	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X559	5
5	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13			X542	1
6	unused
7	unused
8	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X200	1
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X200	2
10	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X200	34
11	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X200	33
12	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X281	1
13	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13			X542	4
14	SUMITOMO	8240-0182	0.64x0.64F	RD	0.13			X542	3
15	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X187	1
16	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X535	1
17	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X186	1
18	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X200	39
19	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X559	4
20	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X558	6
21	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X559	6
22	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13			X542	2
23	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X186	2
24	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X547	2
25	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X550	2
26	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X559	3
27	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X559	7
28	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X558	3
29	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X558	7
30	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X547	1
31	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X550	1
32	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X200	40
33	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X200	27
34	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X200	35
35	SUMITOMO	8100-3625	0.64x0.64F	TN	0.50			X576	1
36	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50			X576	2
37	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50			X566	1
38	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X566	2
39	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50
40	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50
