X170A

Tesla Part Number

1042593-03-A

Connector

SUMITOMO 6098-5718

Color

GY

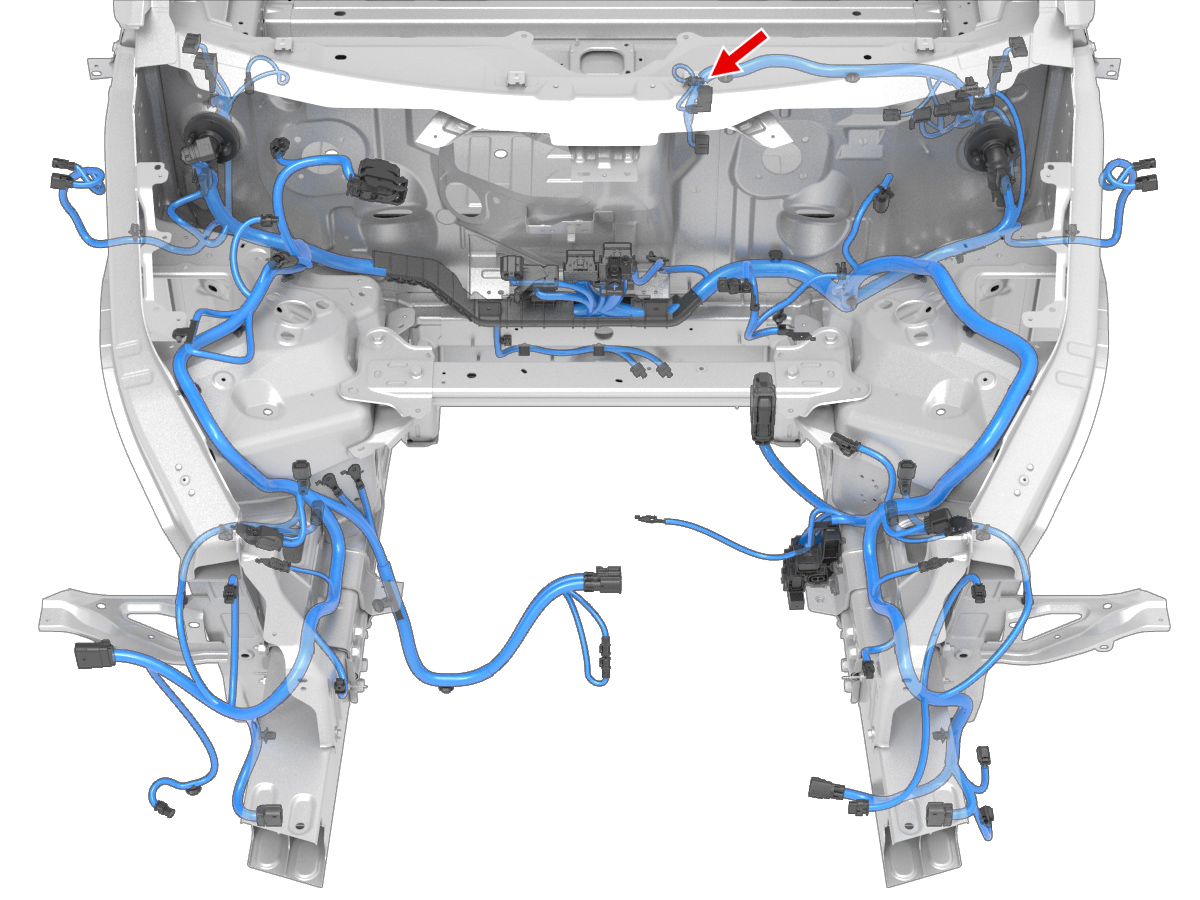

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0339	1.5x0.64F	RD	0.13			X037	13
2	SUMITOMO	8240-0339	1.5x0.64F	YE	0.13			X037	12
3	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X010	13
4	SUMITOMO	8240-0214	1.5x0.64F	GN	1.50			X010	93
5	SUMITOMO	8240-0214	1.5x0.64F	WH	2.00			X010	76
6	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X120A	1
7	SUMITOMO	8240-0339	1.5x0.64F	WH	0.13			X057	10
8	SUMITOMO	8240-0339	1.5x0.64F	BN	0.13			X057	11
9	SUMITOMO	8240-0215	1.5x0.64F	GY	0.35			X010	28
10	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00			G012	6
11	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00			G012	5
12	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X120A	11
