X912F

Tesla Part Number

1516177-00-A

Connector

DELPHI 15514473

Color

BK

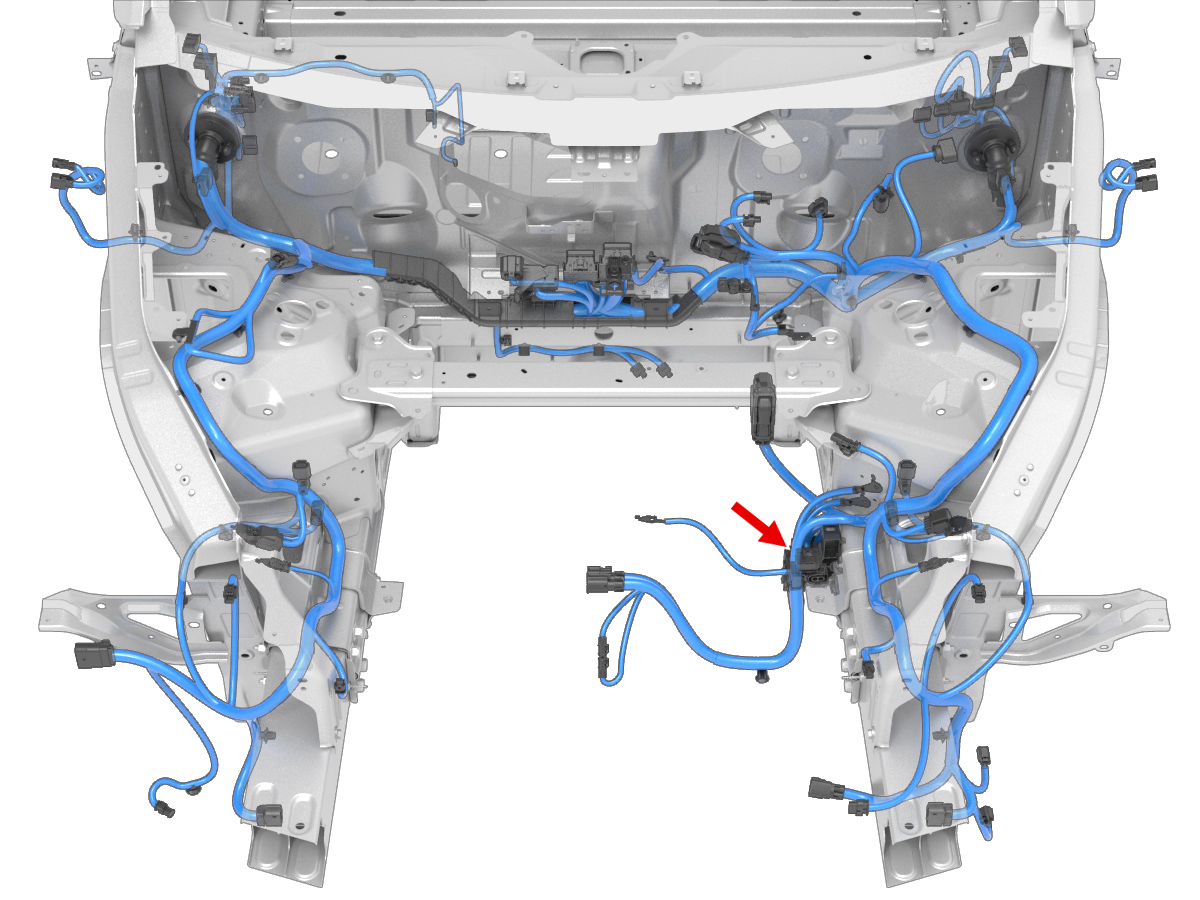

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35031567	1.5x0.8F	BU	0.35	TESLA	MAT-120-260	X071	1
2	DELPHI	35031567	1.5x0.8F	GN	0.35	TESLA	MAT-120-260	X071	10
3	DELPHI	35031567	1.5x0.8F	BN	0.35	TESLA	MAT-120-260	X071	2
4	DELPHI	35031567	1.5x0.8F	VT	0.35	TESLA	MAT-120-260	X071	9
5	DELPHI	35031567	1.5x0.8F	RD	0.35	TESLA	MAT-120-260	X071	8
6	DELPHI	35031567	1.5x0.8F	YE	0.35	TESLA	MAT-120-260	X071	6
7	DELPHI	35031567	1.5x0.8F	GN	0.35	TESLA	MAT-120-260	X071	16
8	DELPHI	35031567	1.5x0.8F	BU	0.35	TESLA	MAT-120-260	X071	7
9	DELPHI	35031567	1.5x0.8F	VT	0.35	TESLA	MAT-120-260	X071	11
10	DELPHI	35031567	1.5x0.8F	WH	0.35	TESLA	MAT-120-260	X071	14
11	DELPHI	35031567	1.5x0.8F	RD	0.35	TESLA	MAT-120-260	X070	8
12	DELPHI	35031567	1.5x0.8F	GY	0.35	TESLA	MAT-120-260	X070	23
13	DELPHI	35031567	1.5x0.8F	BN	0.35	TESLA	MAT-120-260	X070	22
14	unused
15	unused
16	unused
