X935F

Tesla Part Number

1517048-00-A

Connector

YAZAKI 7289-4104-40

Color

GY

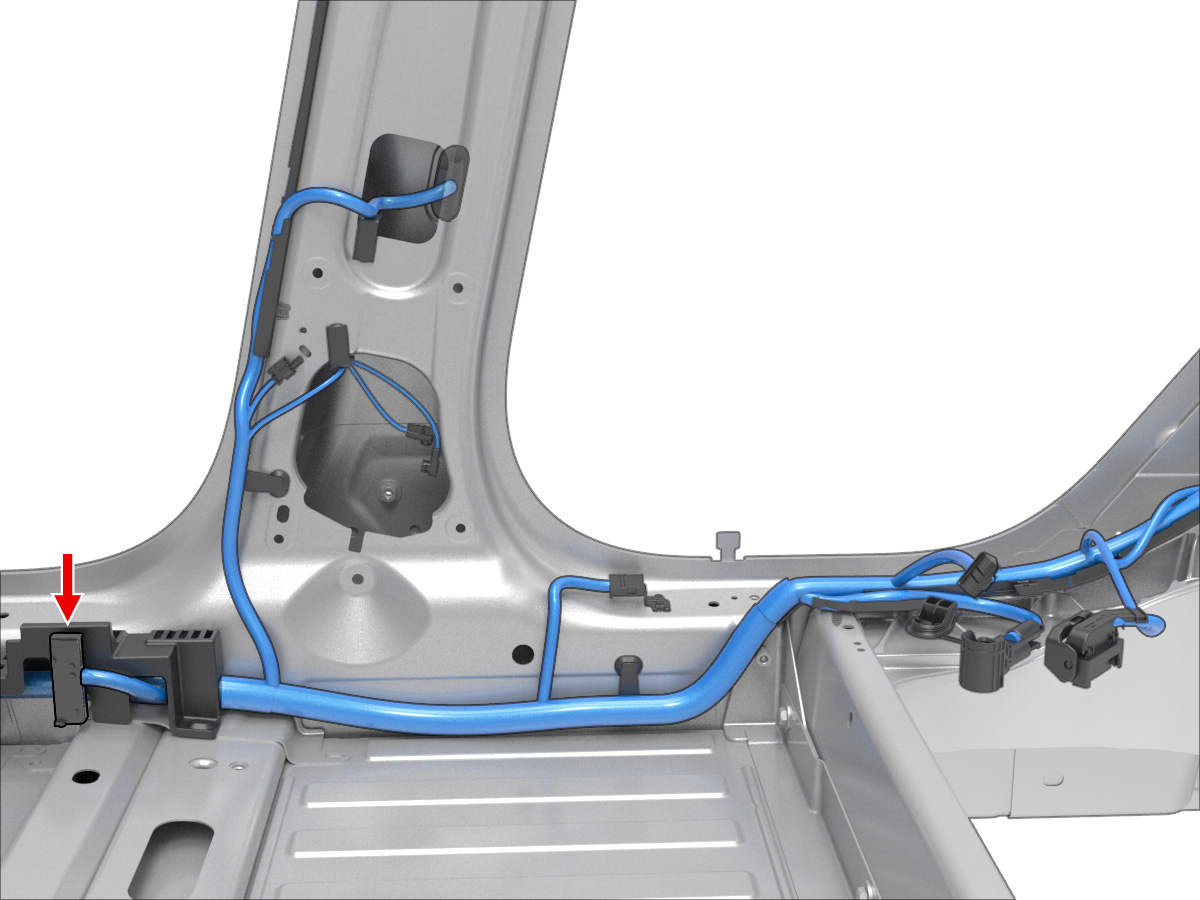

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	WH	2.00			X561	8
2	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X561	7
3	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X171	1
4	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50			X171	2
5	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X171	5
6	SUMITOMO	8240-0215	1.5x0.64F	GY	0.50			X171	6
7	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X051	43
8	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50			X171	16
9	SUMITOMO	8240-0215	1.5x0.64F	BN	0.50			X171	15
10	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X560	2
11	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X560	1
12	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50			X942F	17
13	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X942F	2
14	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X222	1
15	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X222	2
16	unused
17	unused
18	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X220	1
19	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X220	2
20	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X926M	18
21	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X926M	19
22	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X226	2
23	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X226	1
24	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X165A	3
25	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X942F	13
26	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X207	1
27	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X207	2
28	SUMITOMO	8240-0182	0.64x0.64F	BK	0.13			X098	6
29	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13			X098	7
30	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X051	14
31	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X051	30
32	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X098	13
33	unused
34	unused
35	unused
36	unused
37	unused
38	unused
39	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X167A	2
40	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X167A	3
41	unused
42	unused
43	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X051	37
44	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X494	4
45	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13			X494	3
46	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X167A	6
47	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X167A	5
48	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X167A	4
49	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X167A	1
50	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X563	7
51	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X563	8
52	SUMITOMO	8240-0182	0.64x0.64F	RD	0.13			X098	11
53	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13			X098	10
54	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X168A	2
55	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X218	1
56	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X218	2
57	unused
58	unused
59	unused
60	unused
61	unused
62	SUMITOMO	8240-0214	1.5x0.64F	BN	2.00			X165A	4
63	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X165A	1
