Underhood Apron - Rear (Remove and Replace)

Correction Code 12251102

Removal

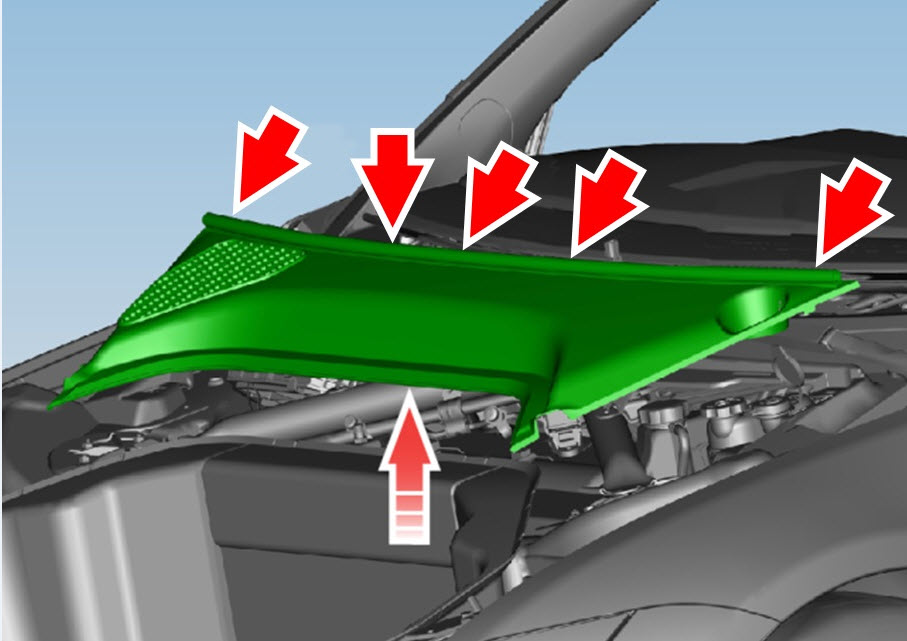

  1. Release the clips that secure the rear center underhood apron.

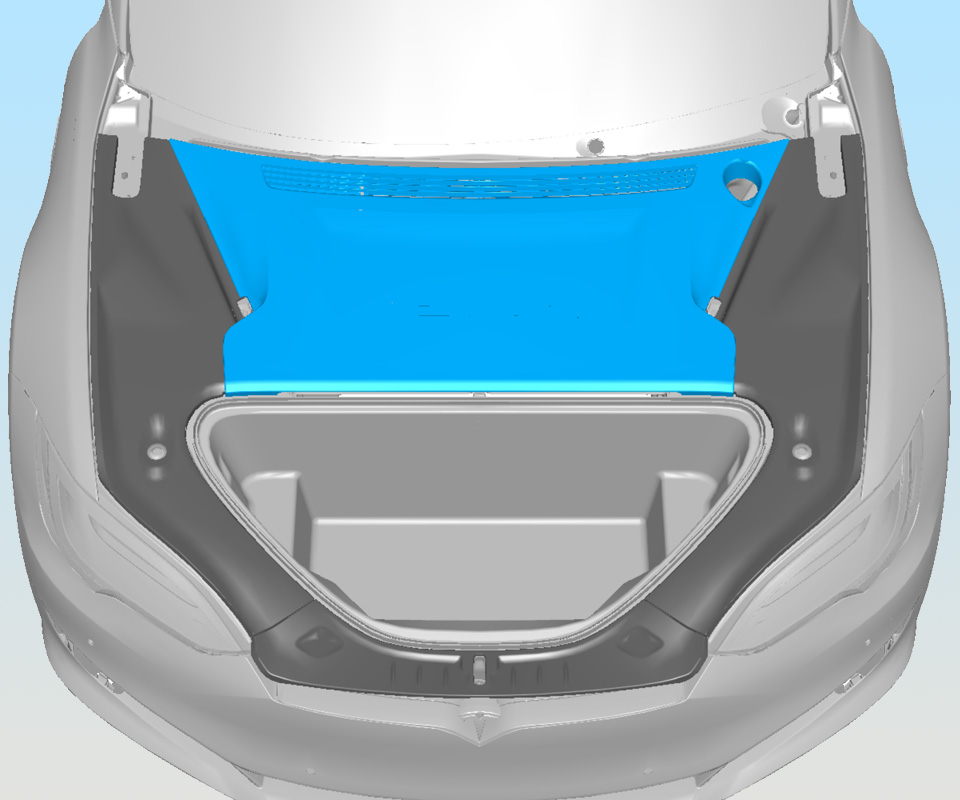

    Vehicles built through April 11, 2016 Vehicles built after April 11, 2016
  2. Remove the rear center underhood apron.

Installation

Installation procedure is the reverse of removal, except for the following:

Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
Replace any broken clips.
