Assembly - Instrument Panel Lower - RH (Remove and Replace)

Correction Code 14054002

Removal

  1. Open the glove box.

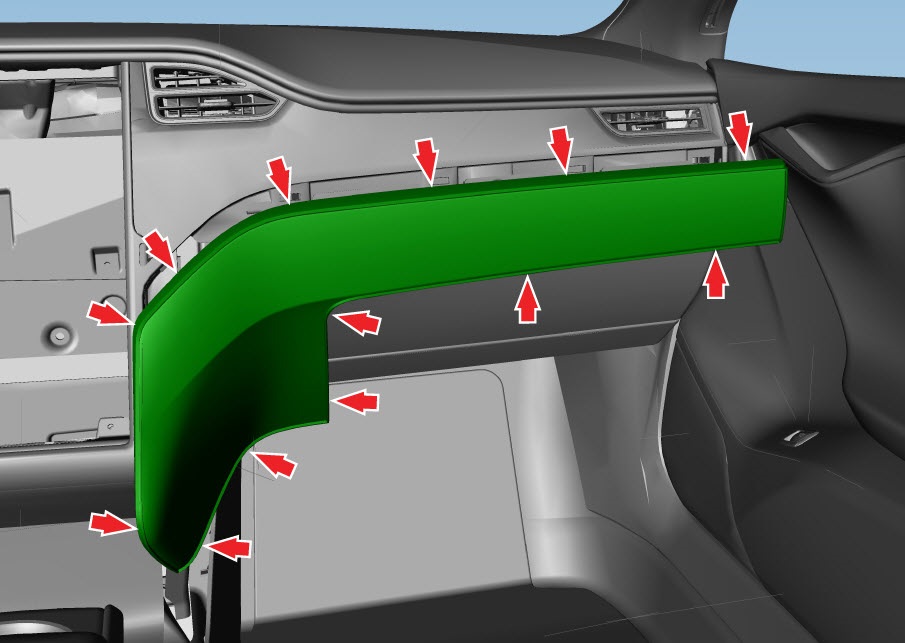

  2. Using a suitable tool, release the clips that secure the trim to the instrument panel.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Take care not to damage component(s).
  3. Remove the RH instrument panel lower assembly from the vehicle.

Installation

Installation procedure is the reverse of removal, except for the following:
Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
Replace any broken clips.
