Carpet - Trunk Floor (Remove and Replace)

Correction Code 15245402

Parent topic: 1524 - Luggage Compartment Trim

Remove

Open the liftgate.

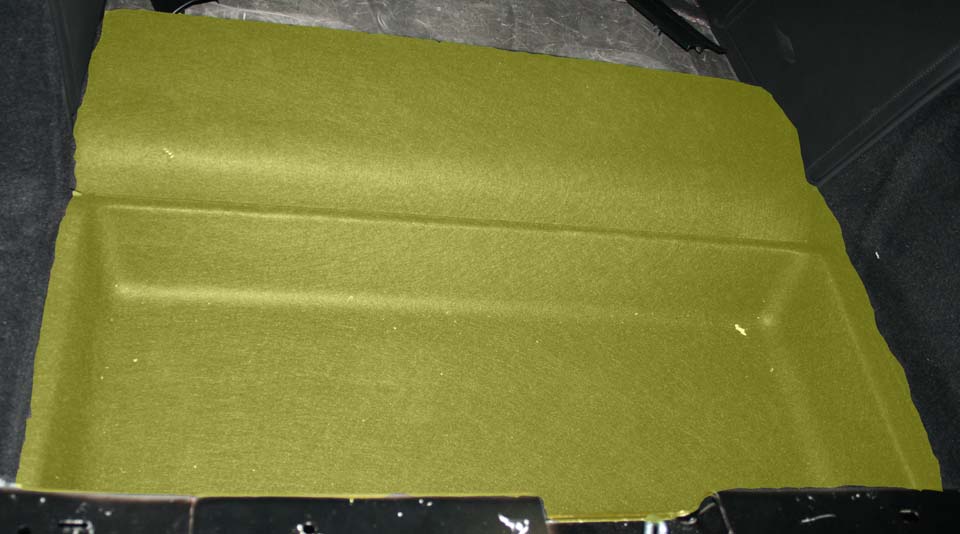

Remove the carpet from the vehicle.

Install

Installation procedure is the reverse of removal.
