Seal - Liftgate (Remove and Replace)

Correction Code 11702002

Removal

  1. Open the liftgate.

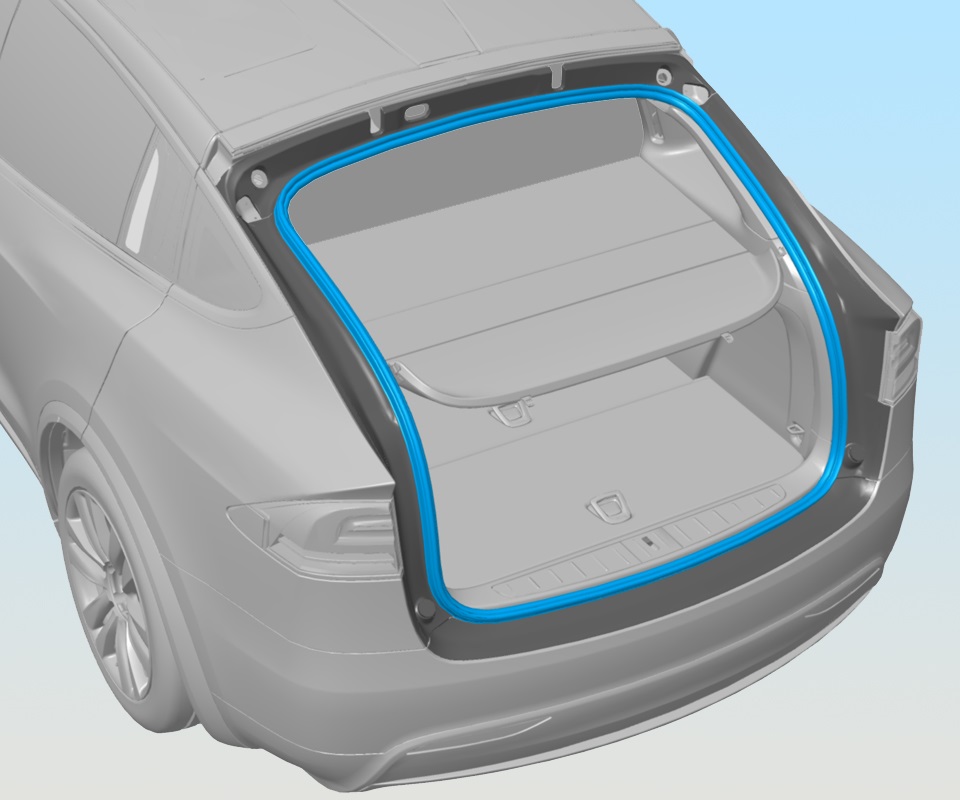

  2. Carefully release the seal from the liftgate.
    Informational PurposesAn informational icon, calling your attention
    Note
    Components have been removed in this graphic to aid clarity.
  3. Remove the seal from the vehicle.

Installation

Installation procedure is the reverse of removal, except for the following:

Informational PurposesAn informational icon, calling your attention
Note
Clean the affected areas before installation.
  1. Ensure that the lip of the seal is seated properly.
    Tip: Use a silicone based lubricant to aid installation, if necessary.
