Closeout Extension - Center Console - LH (Remove and Replace)

Correction Code 15191102

Removal

  1. Release the front clips that secure the center console side trim panel.

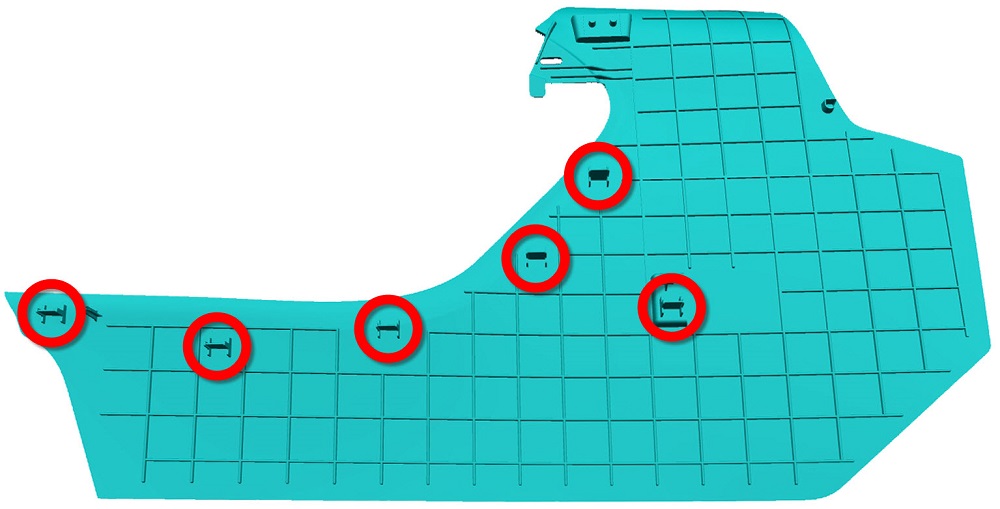

  2. Release the clips (x6) that secure the closeout extension.

Installation

Installation procedure is the reverse of removal.
Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
Replace any broken clips.
