Keystone Panel - Center Console - 2nd Row (Remove and Replace)

Correction Code 15352502

Removal

  1. Open the rear doors.
  2. Move the 2nd row seats fully forward.

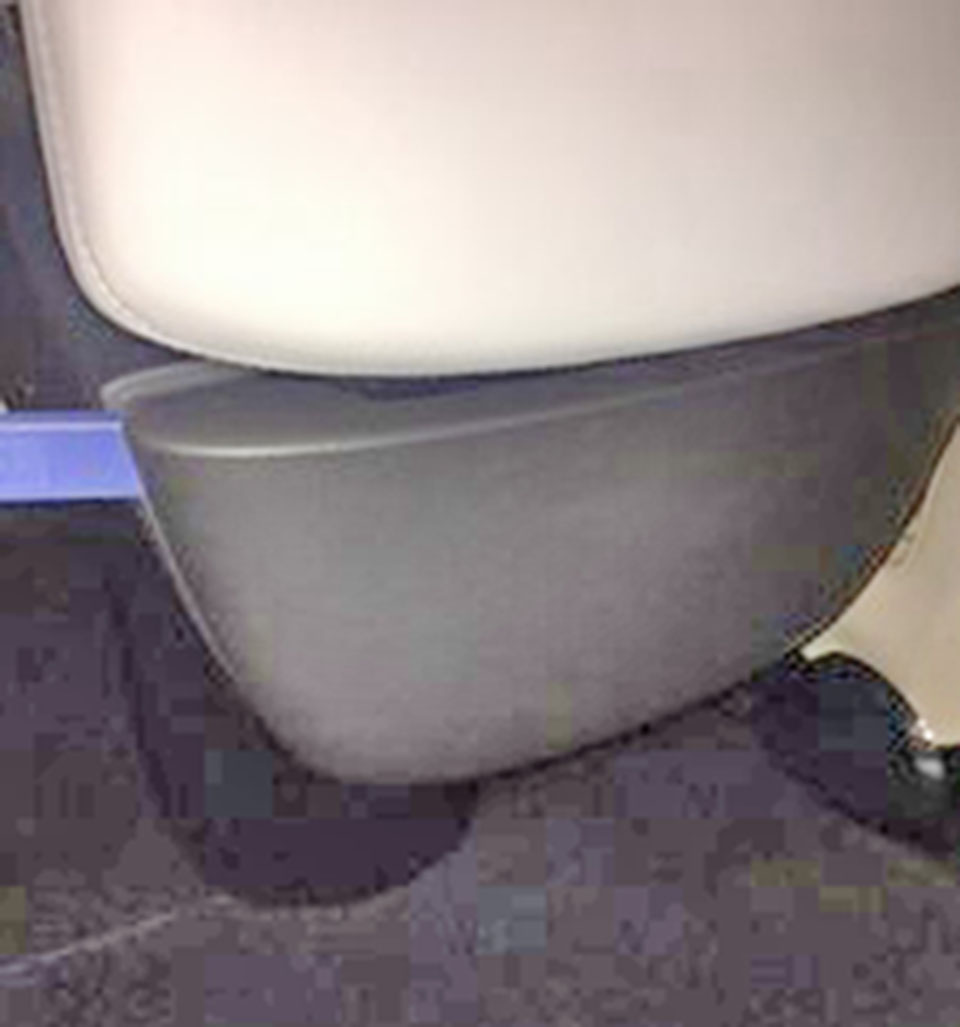

  3. Use a plastic trim tool to release the clips that attach the keystone panel to the 2nd row center console.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Take care not to damage component(s).
  4. Remove the keystone panel from the vehicle.

Installation

Installation procedure is the reverse of removal.
