顶篷（带加热泵款）（拆卸和更换）

校正代码 15203112 0.66 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

警告

尽管此程序已经过验证，但仍是一个草案。可能没有警告和注意事项。请遵守安全要求，处理或靠近高压系统和部件时，请谨慎操作。请将校正修理内容及反馈发送至ServiceDevelopment@teslamotors.com。

拆卸

Open all four doors

注
If vehicle is being powered down, Latch rear doors to prevent accidental closure
Lower all four windows

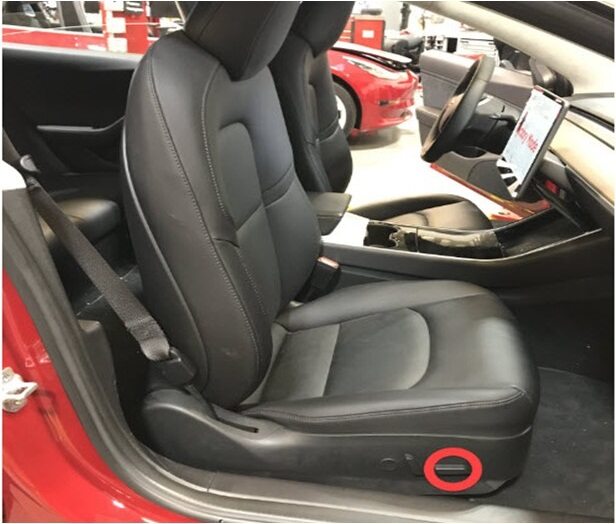

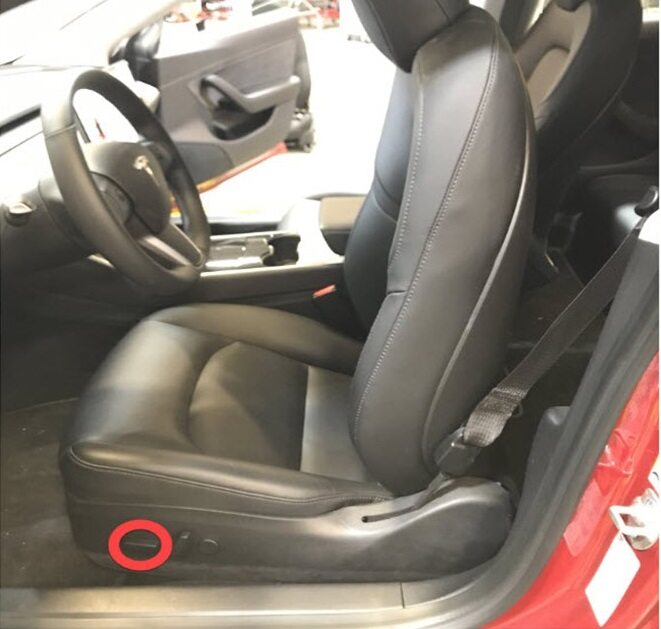

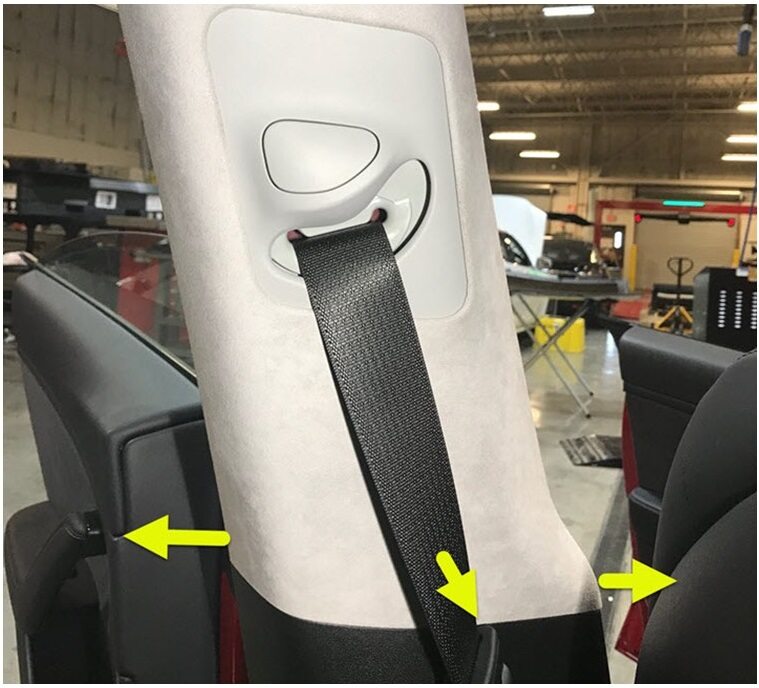

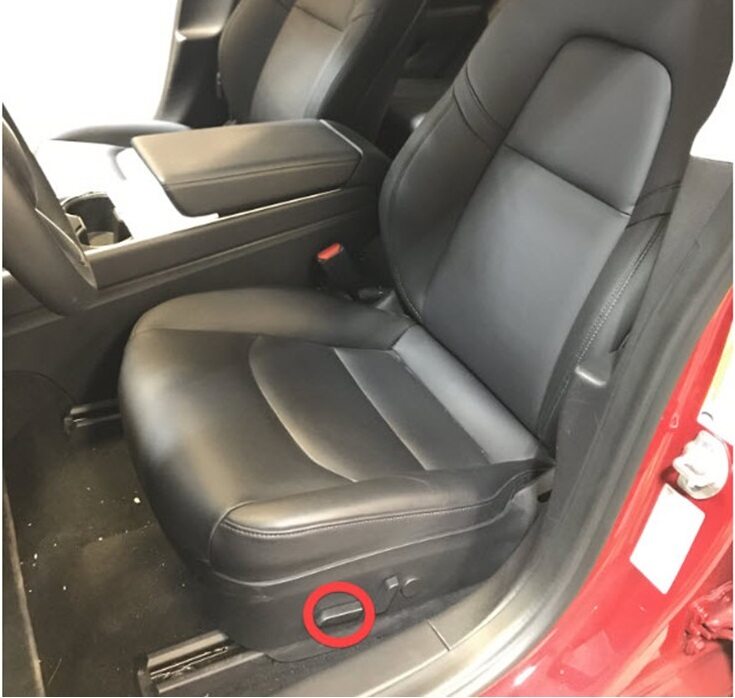

Move LH front seat forward
Move RH front seat forward
Remove RH side rail assembly

注

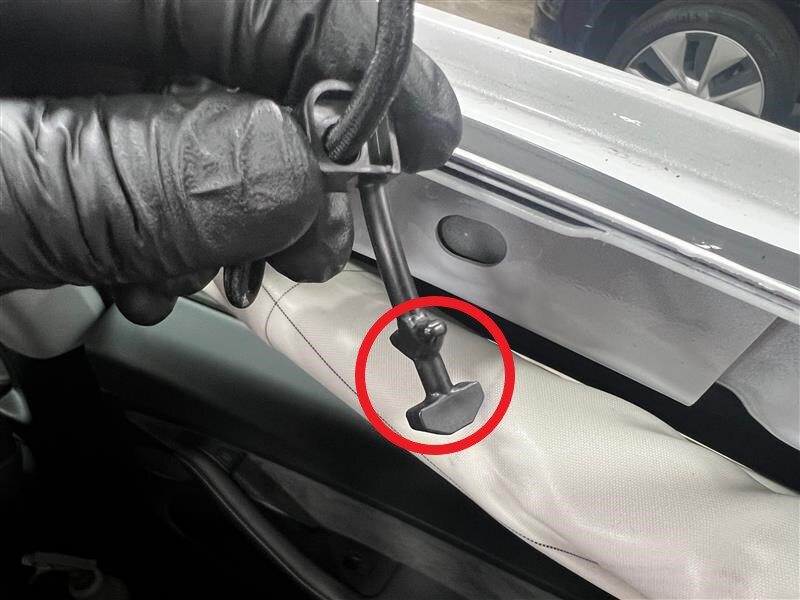

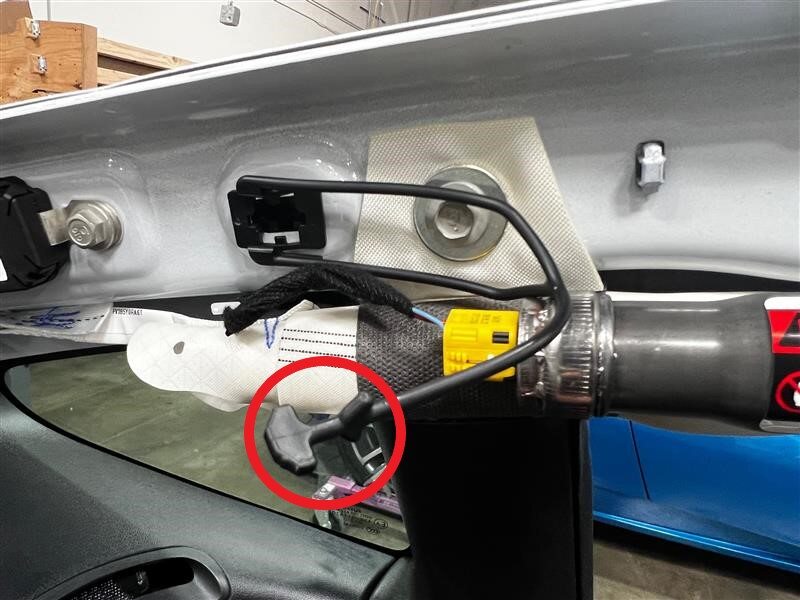

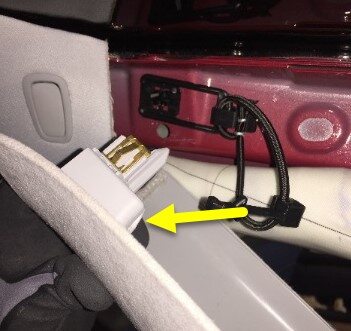

4x clips, 2x tether hooks, Pull the upper corner of the side rail then work your way to bottom, Pull the lower side rail toward LH to release clips, Remove 2x tethers by twisting and pulling away from housing, DO NOT remove the tethers from body side, must be replaced if removed

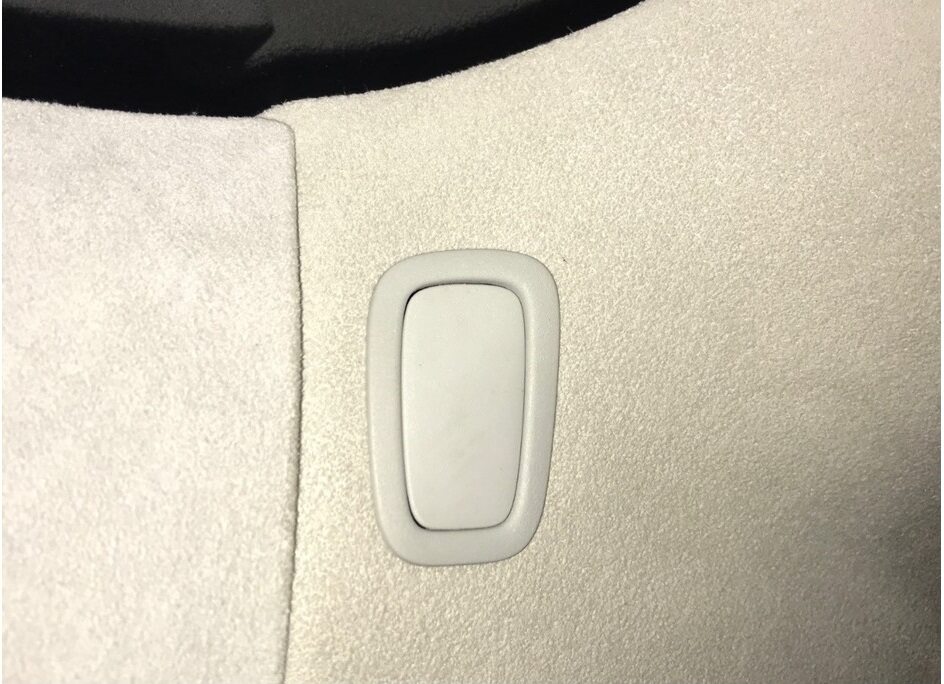

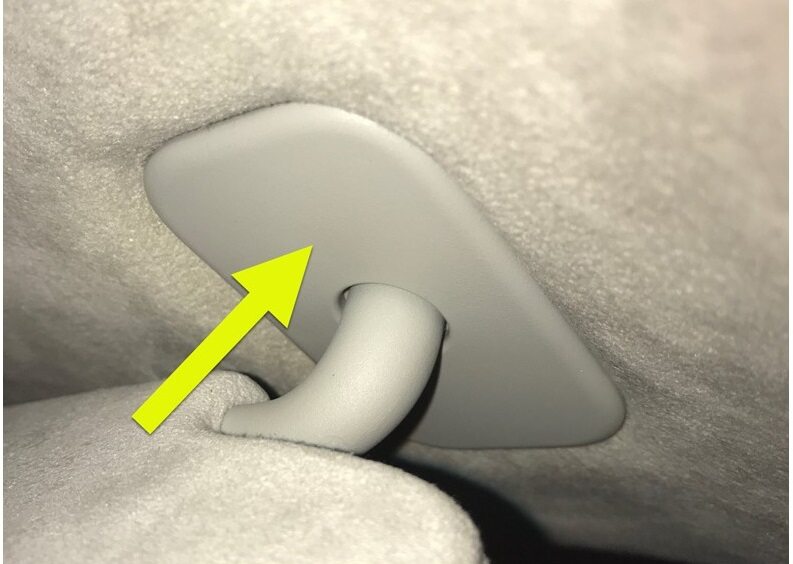

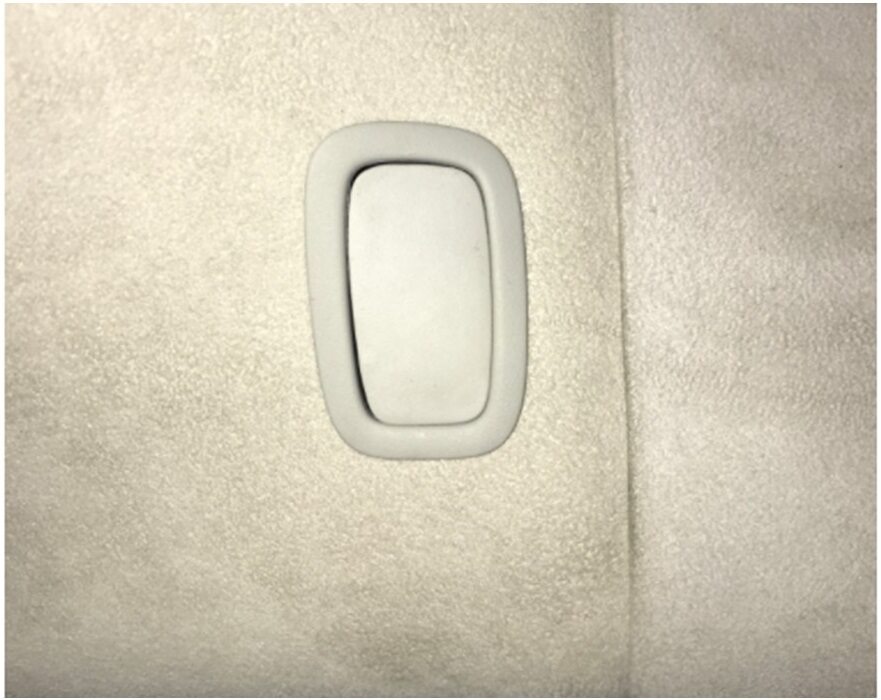

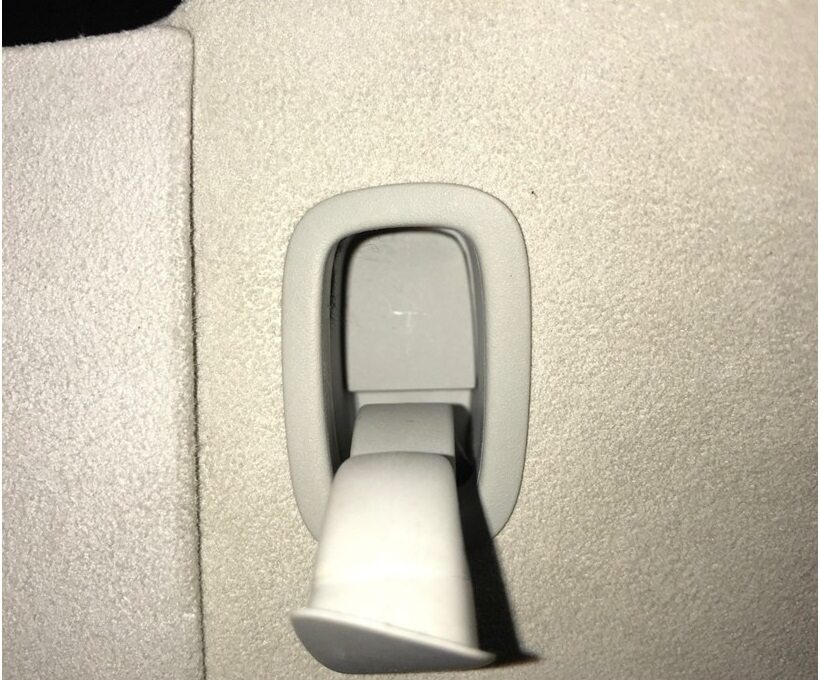

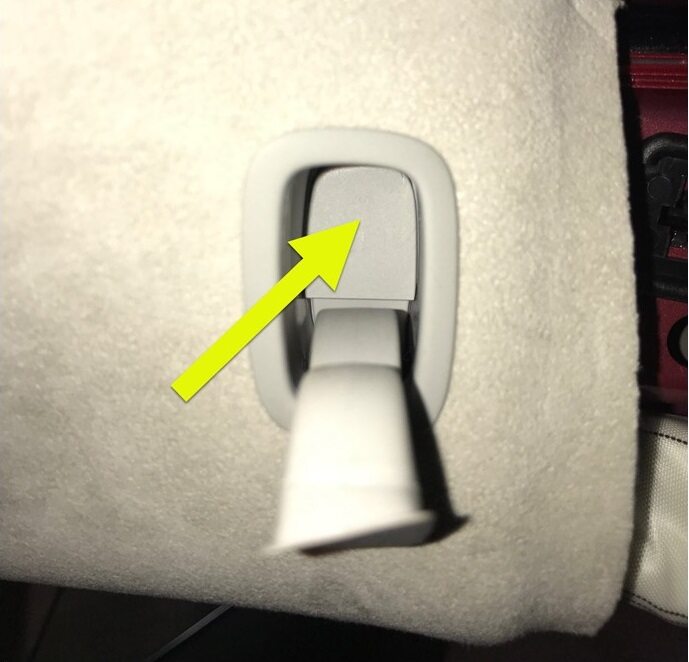

Push open RH coat hook

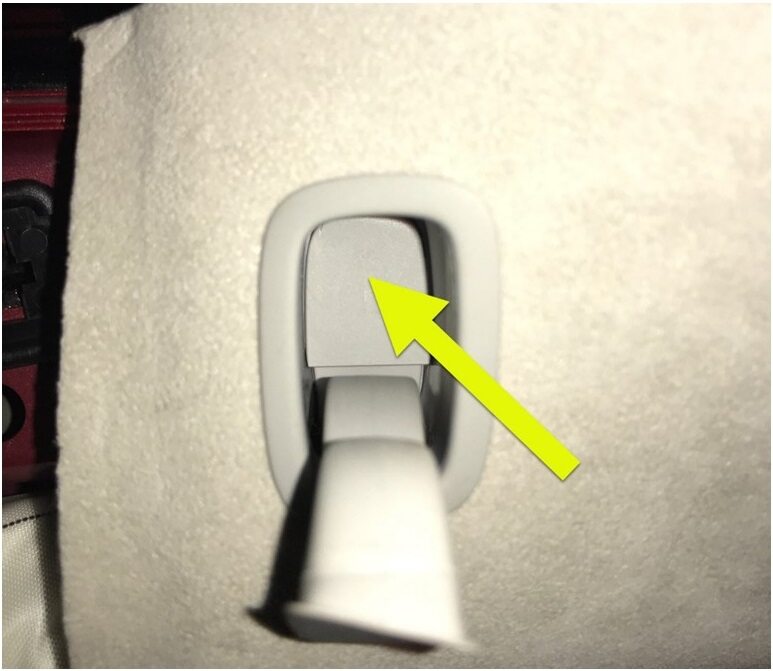

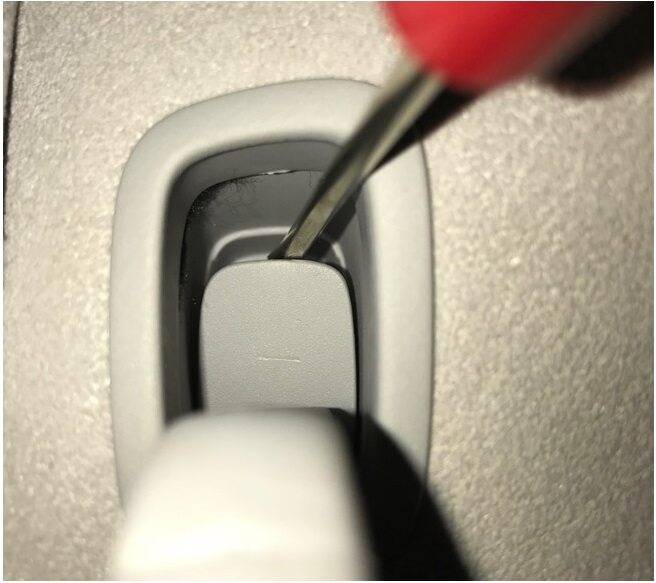

Pry open RH coat hook screw cover

注
2x clips

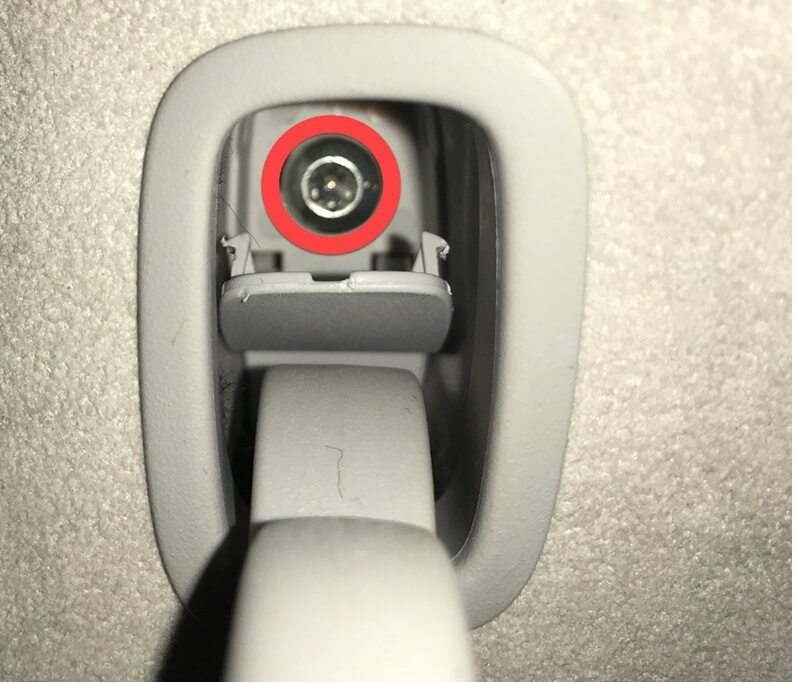

Remove RH coat hook screw

注
1x screw, T25, 2.5 Nm

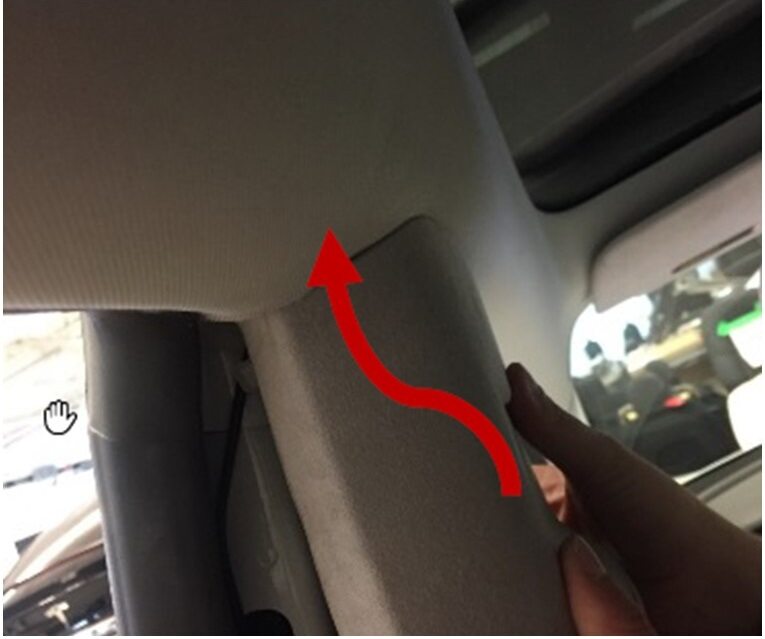

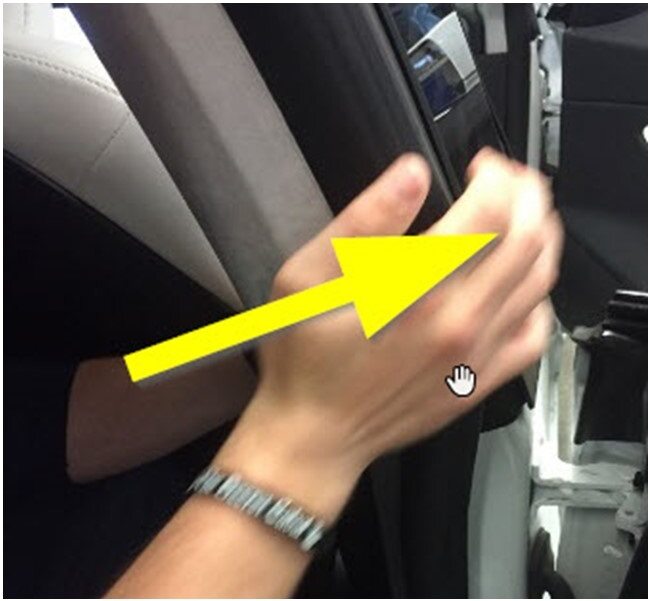

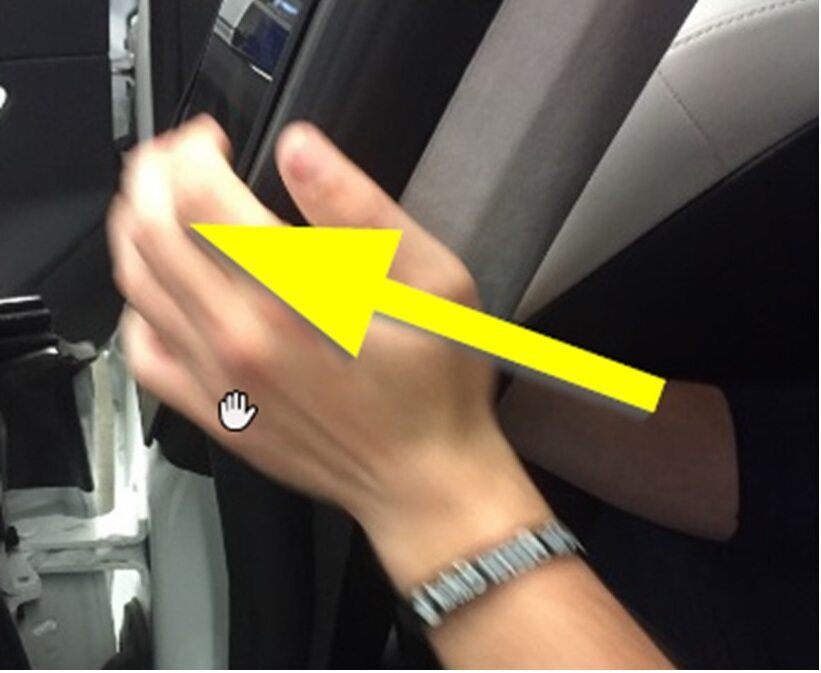

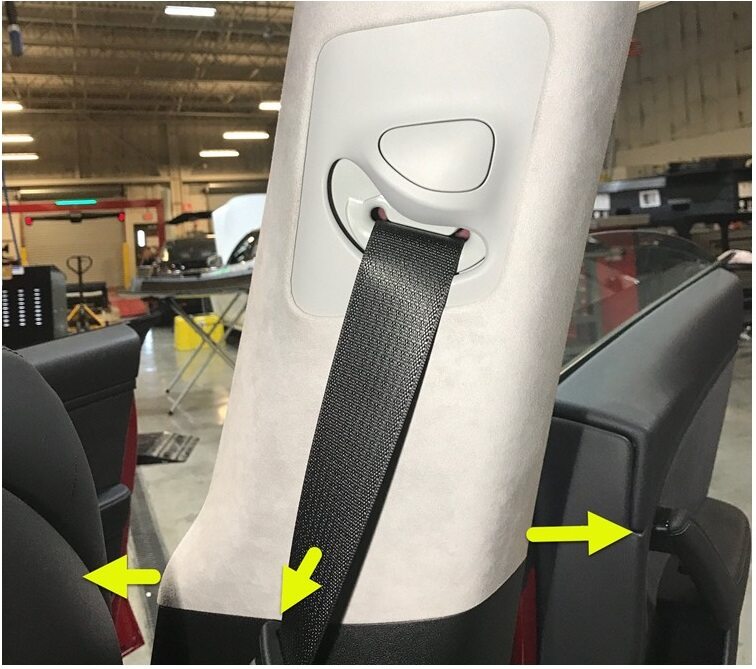

Release clips securing the RH upper B-pillar assembly and move aside

注

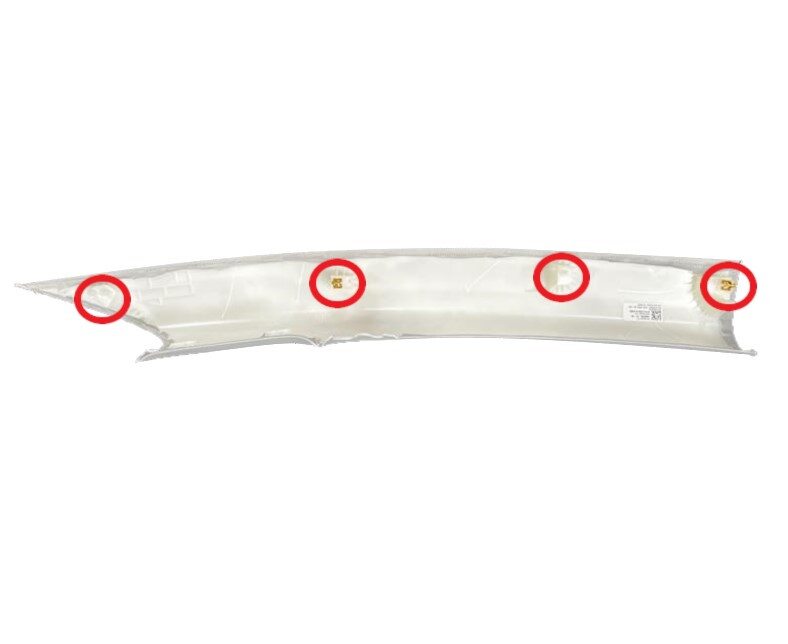

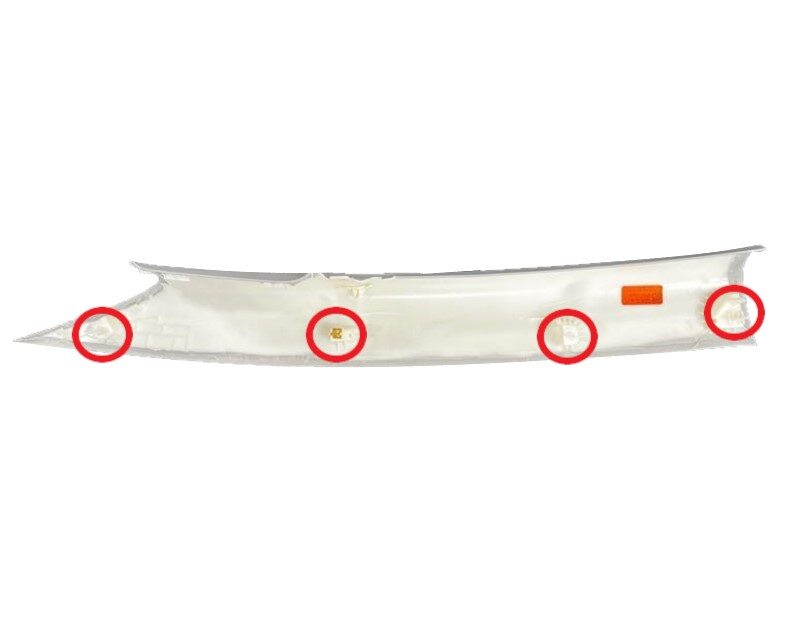

4x clips, Pull the bottom of the upper B-pillar toward inside of the car, then pull the top of trim to release the remaining clips

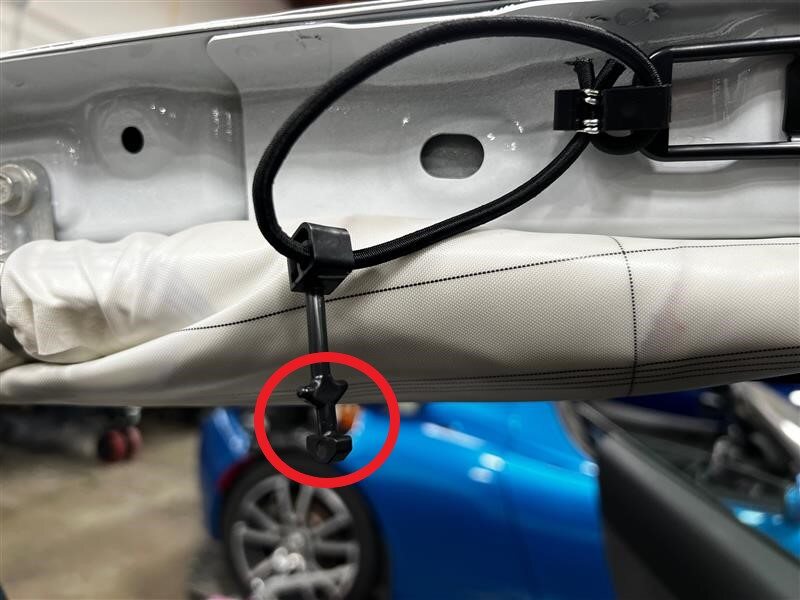

Remove LH side rail assembly

注
4x clips, 2x tether hooks, Pull the upper corner of the side rail then work your way to bottom, Pull the lower side rail toward RH to release clips, Remove 2x tethers by twisting and pulling away from housing, DO NOT remove the tethers from body side, must be replaced if removed
Push open LH coat hook
Pry open LH coat hook screw cover

注
2x securing tabs
Remove LH coat hook screw

注
1x screw, T25, 2.5 Nm
Release clips securing the LH upper B-pillar assembly and move aside

注
4x clips, Pull the bottom of the upper B-pillar toward inside of the car, then pull the top to release the remaining clips
Move LH front seat backward and seat back downward
Remove LH IP end cap

注
3x clips
Remove LH mid A-pillar assembly

注
1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove
Remove clip for LH lower A-pillar trim

注
1x push clip
Remove LH lower A-pillar trim

注
2x clips, 3 guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet

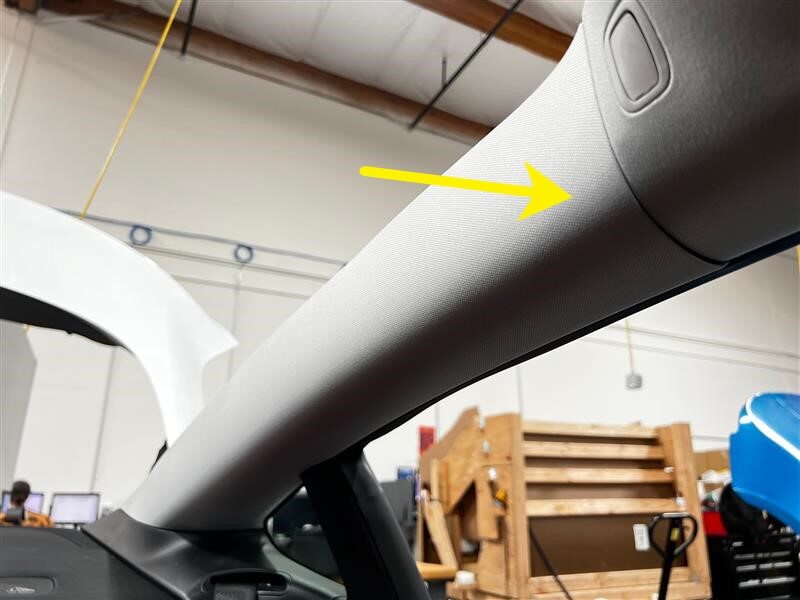

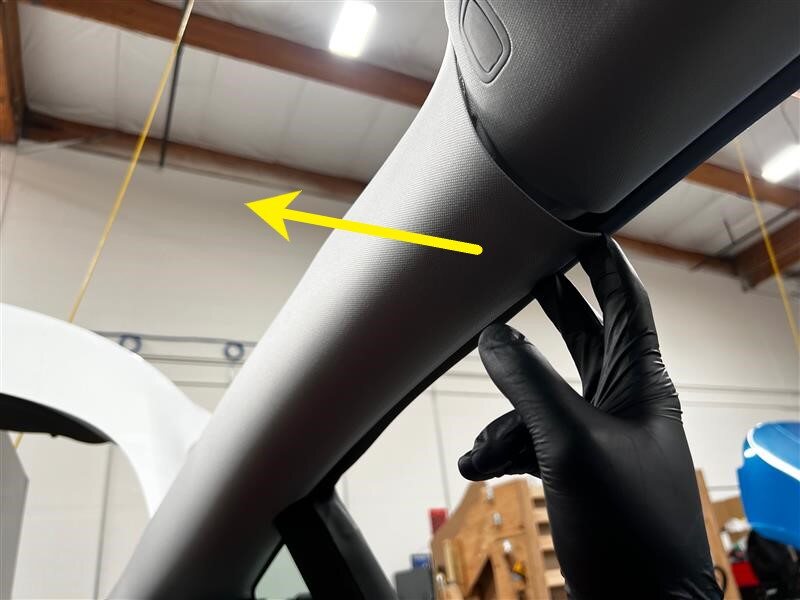

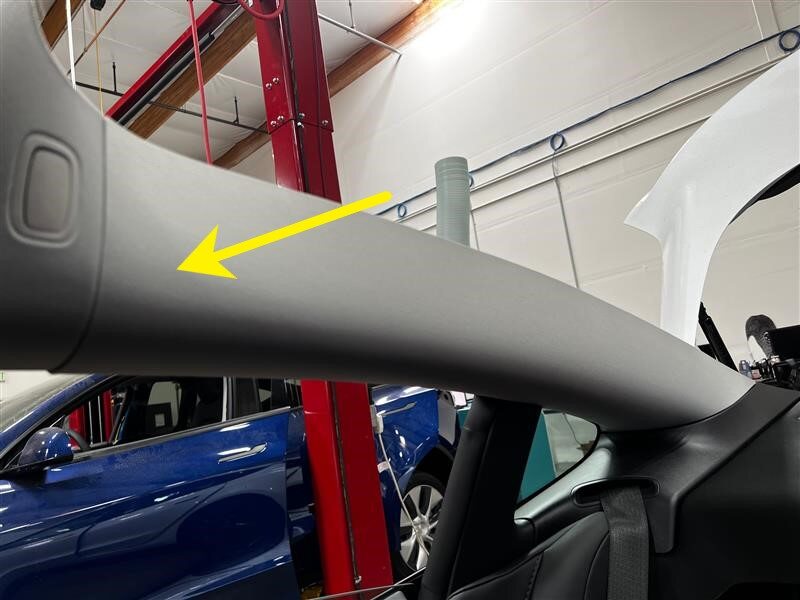

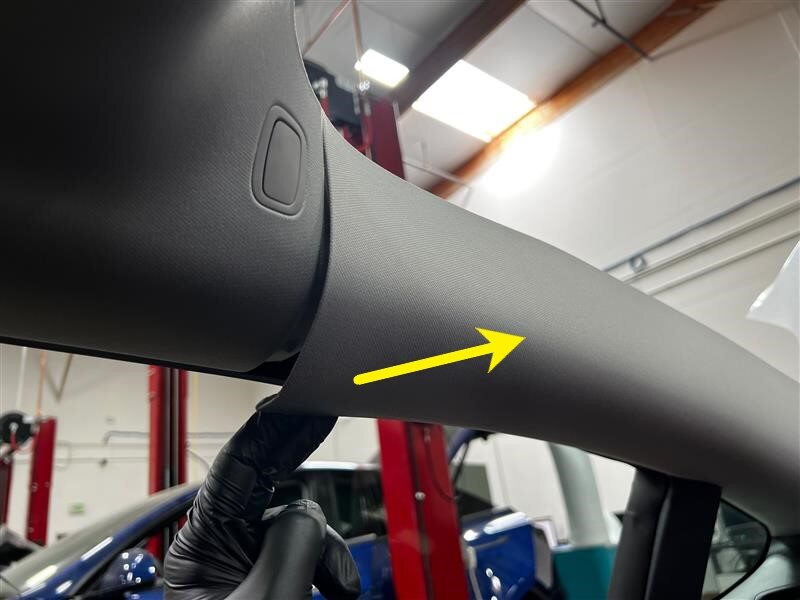

Remove LH upper A-pillar trim

注

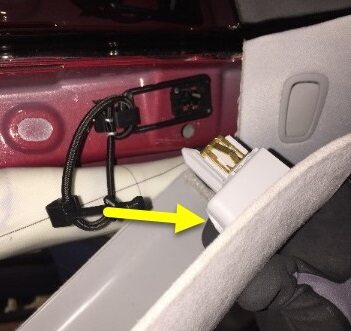

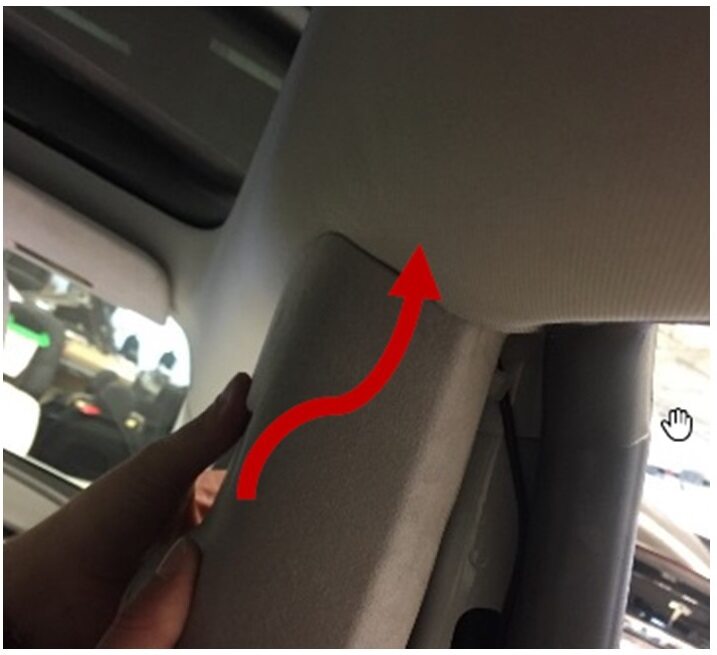

3x clips, Pull inside of the upper portion of upper A-pillar, Remove 3x tether hooks by twisting and pulling away from housing, Then pull upper A-pillar upward to remove

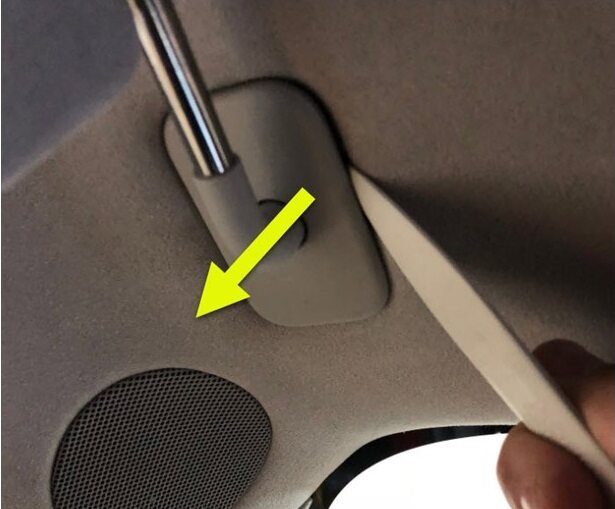

Remove LH sun visor bracket cover

注
4x clips, Extending the sun visor may allow for extra working room

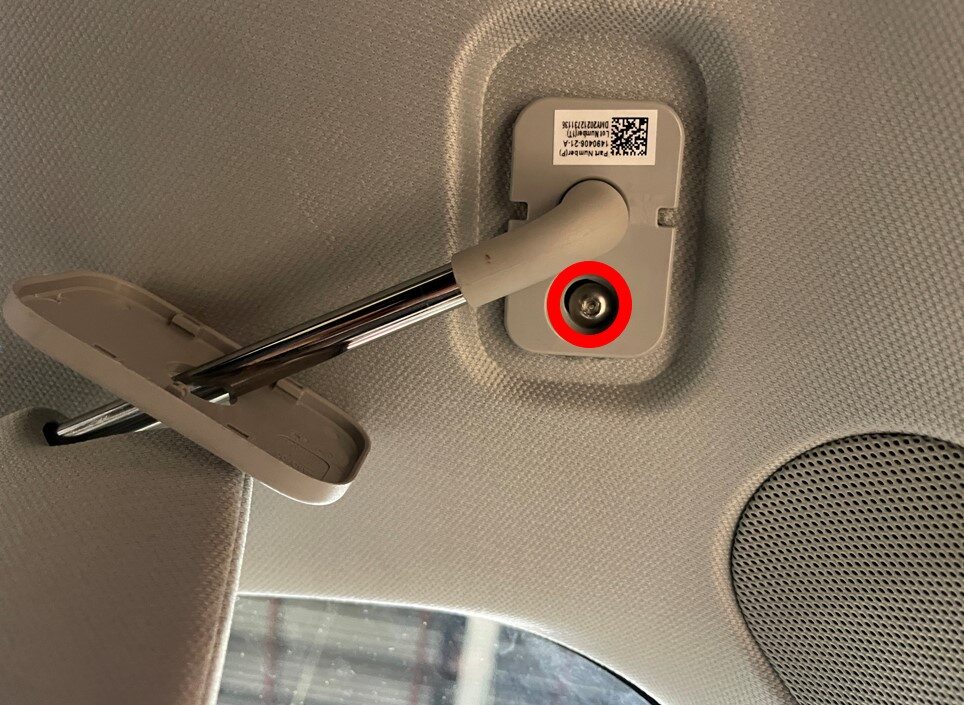

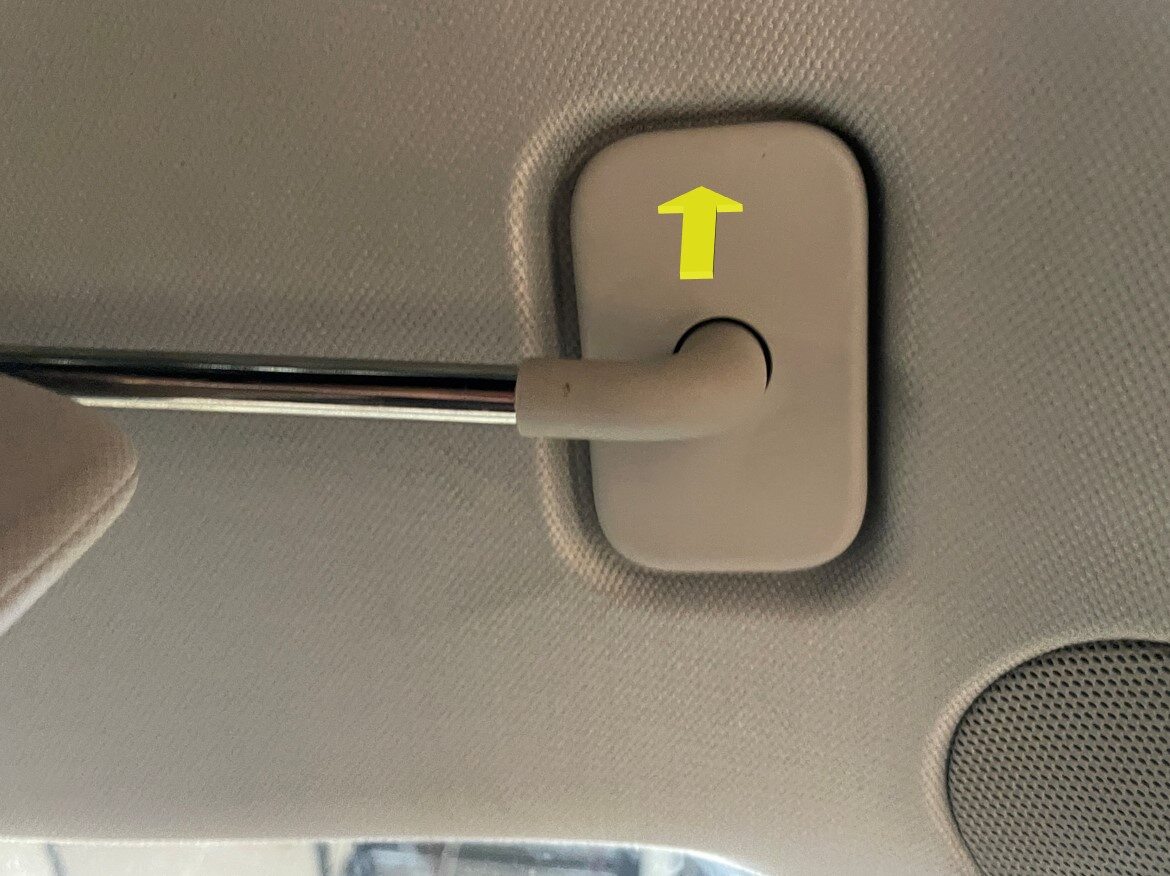

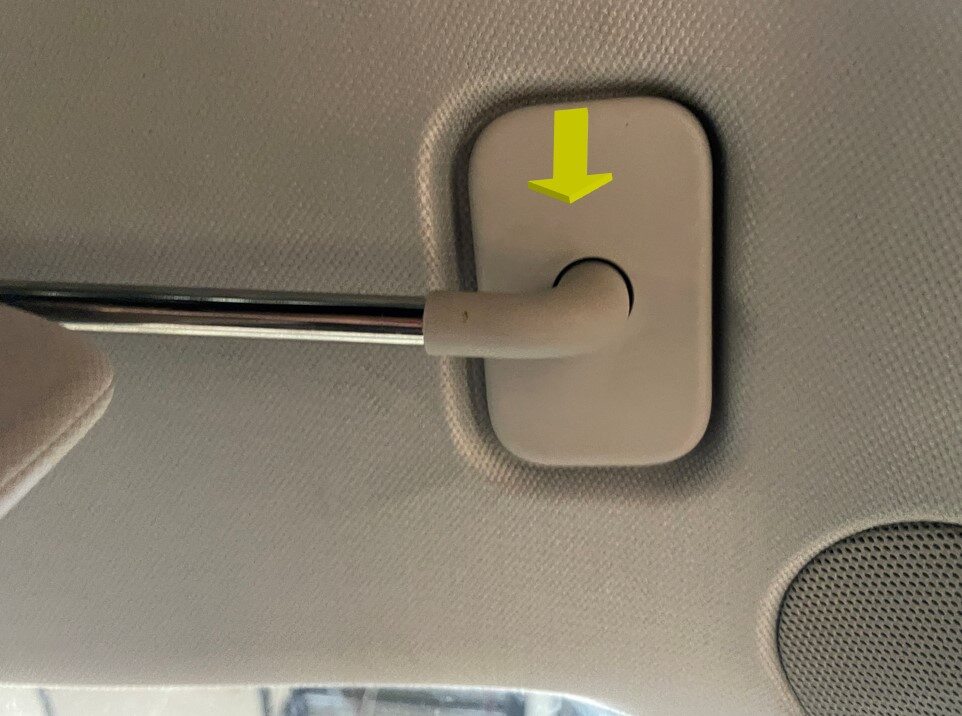

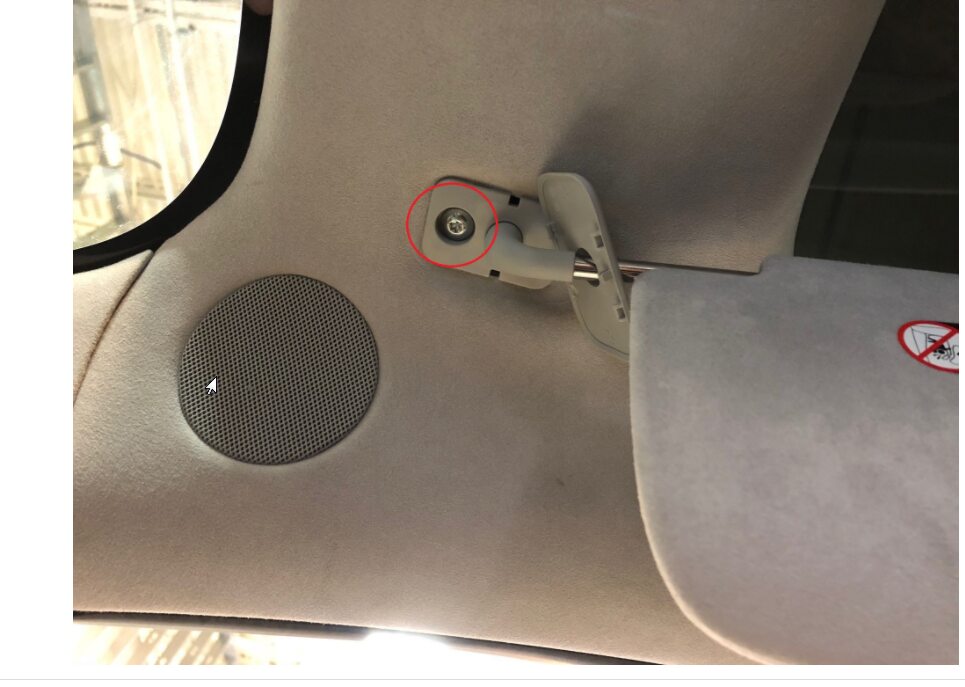

Remove LH sun visor fastener

注
1x screw, T25, 3.5 Nm, Extending the sun visor may allow for extra working room

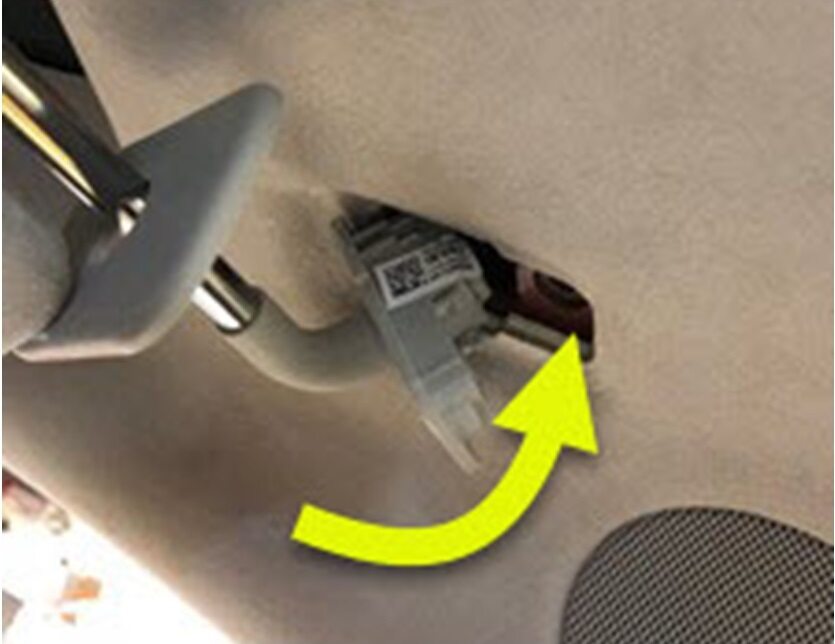

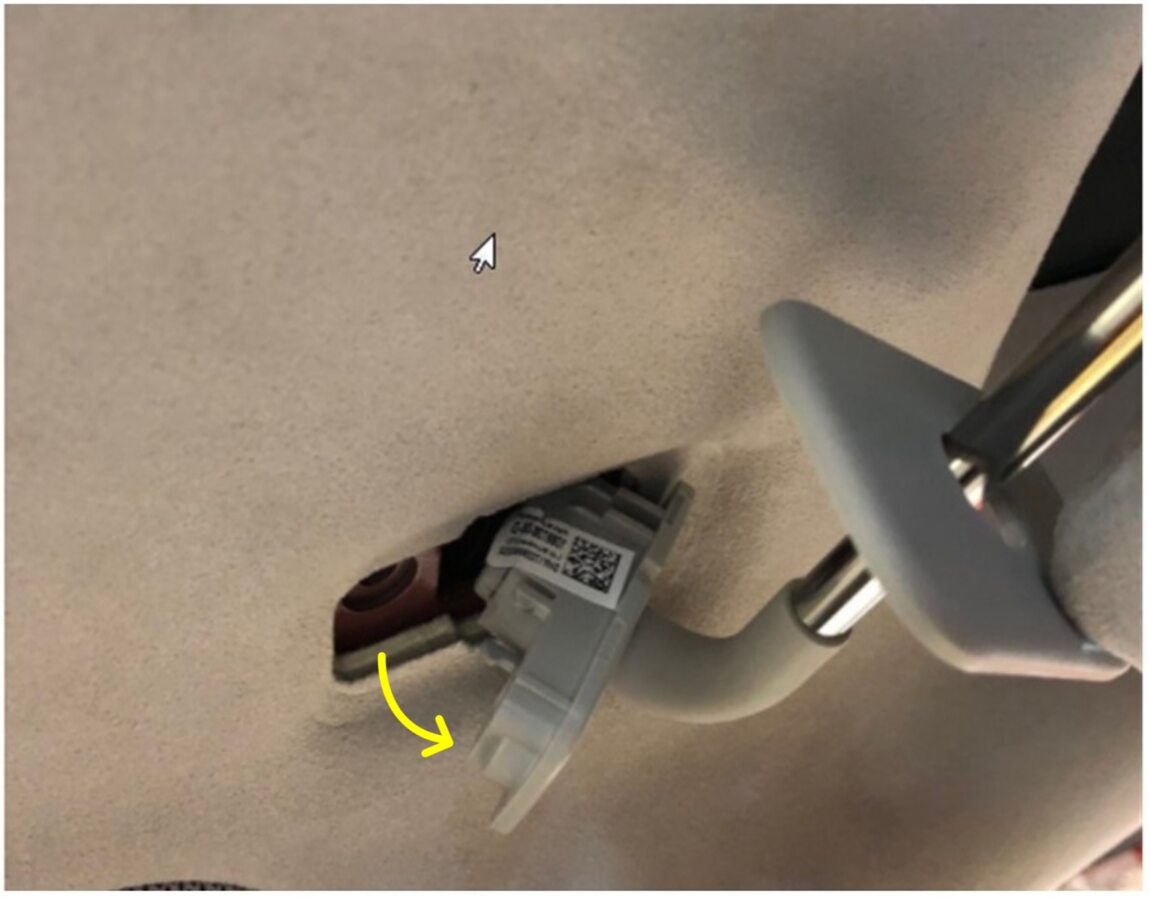

Remove LH sun visor from headliner area

注
Fold sun visor to the closed and folded down position but do not latch in place

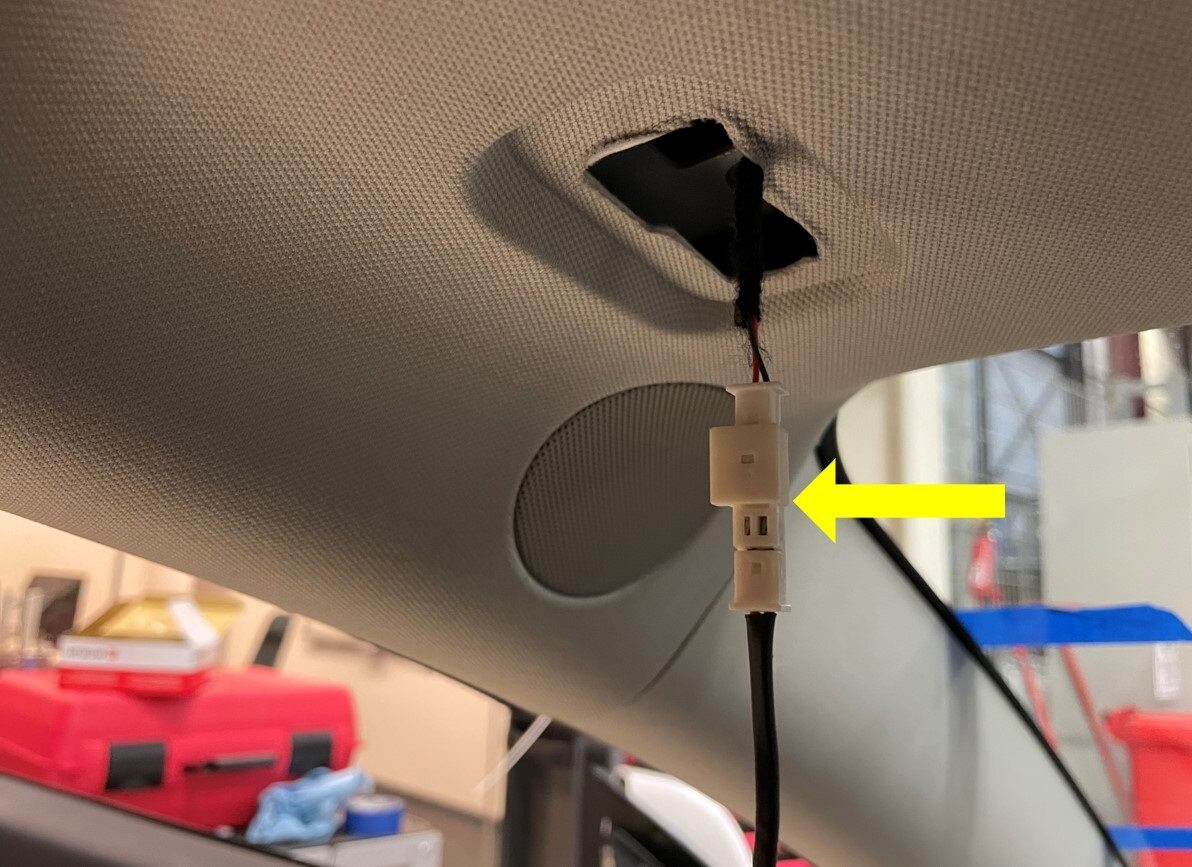

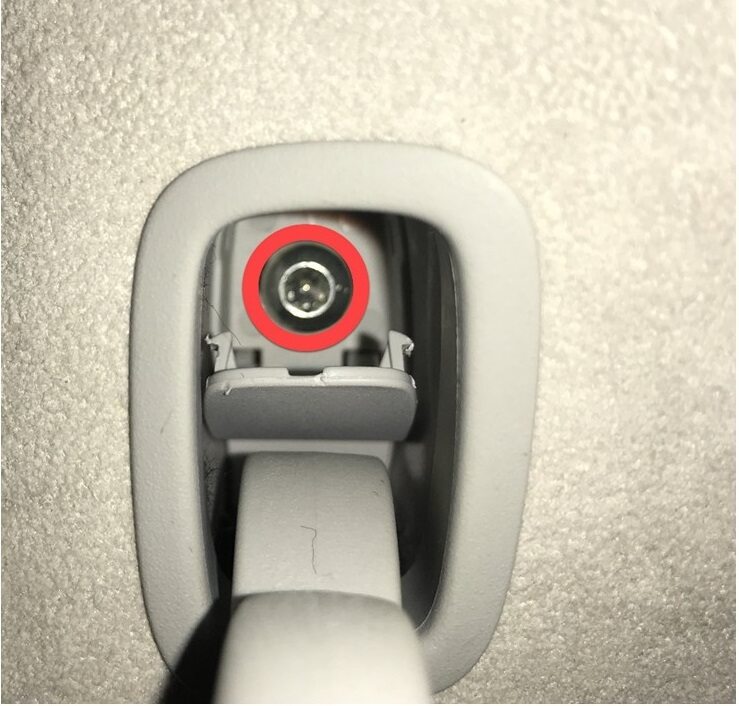

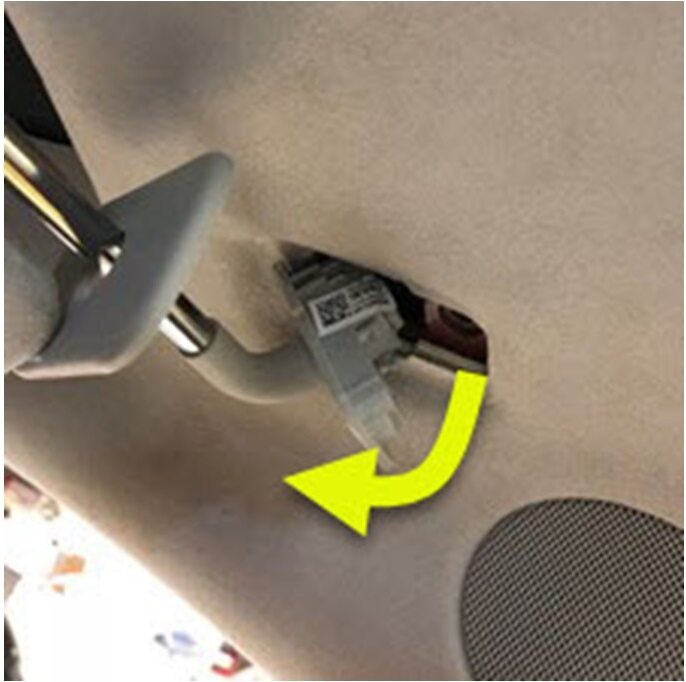

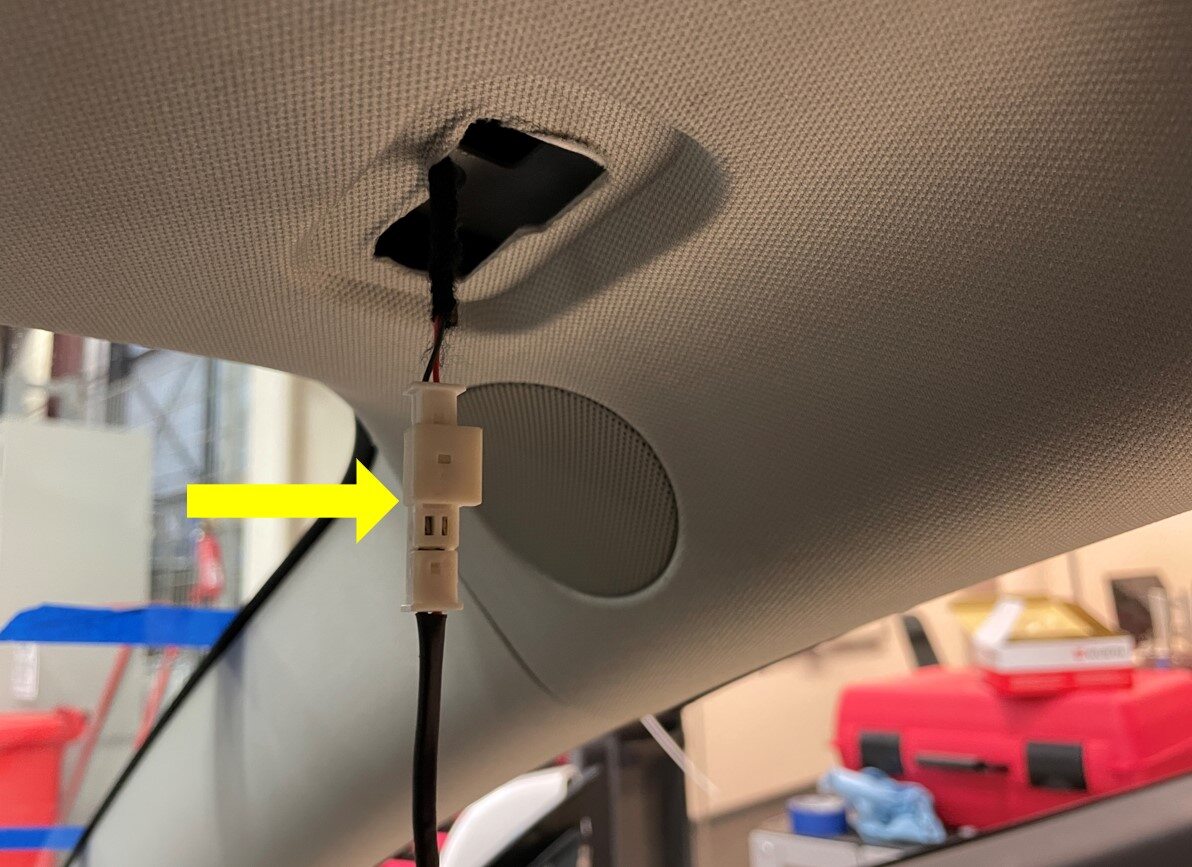

Disconnect LH sun visor connector

注
1x connector

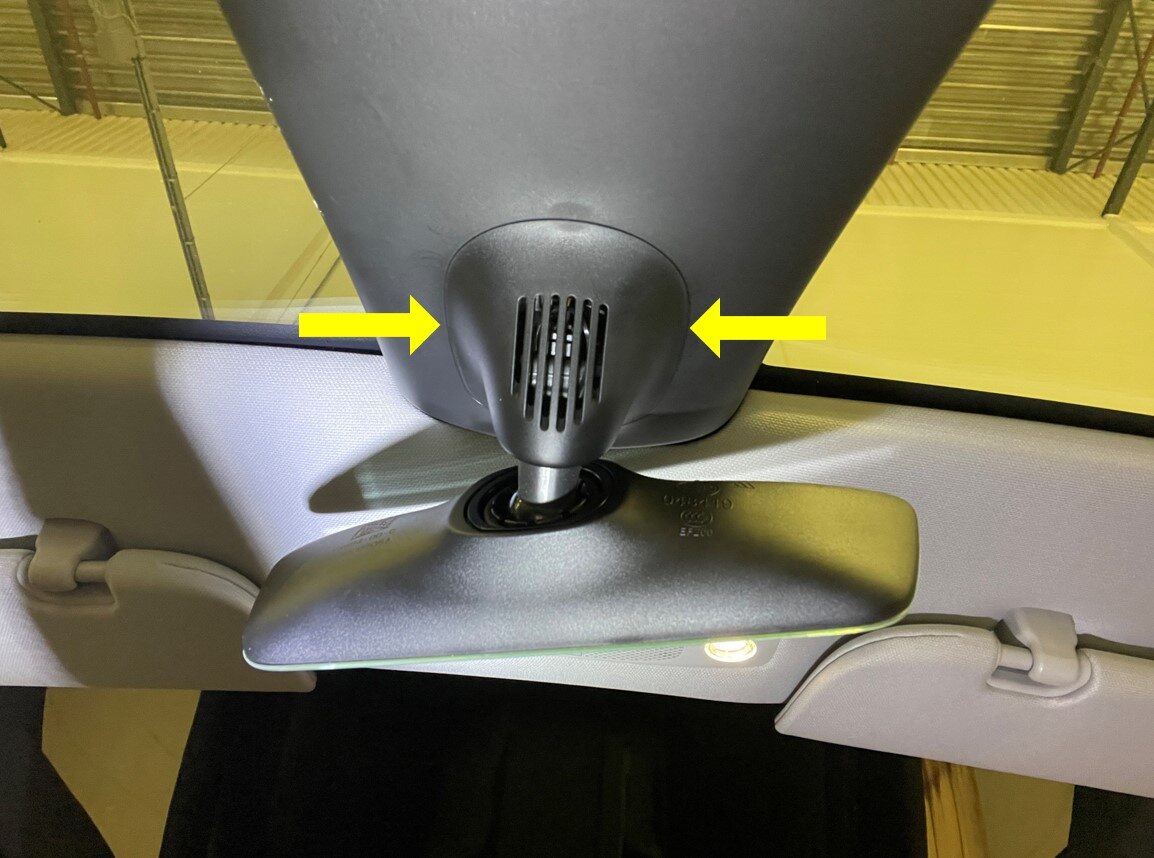

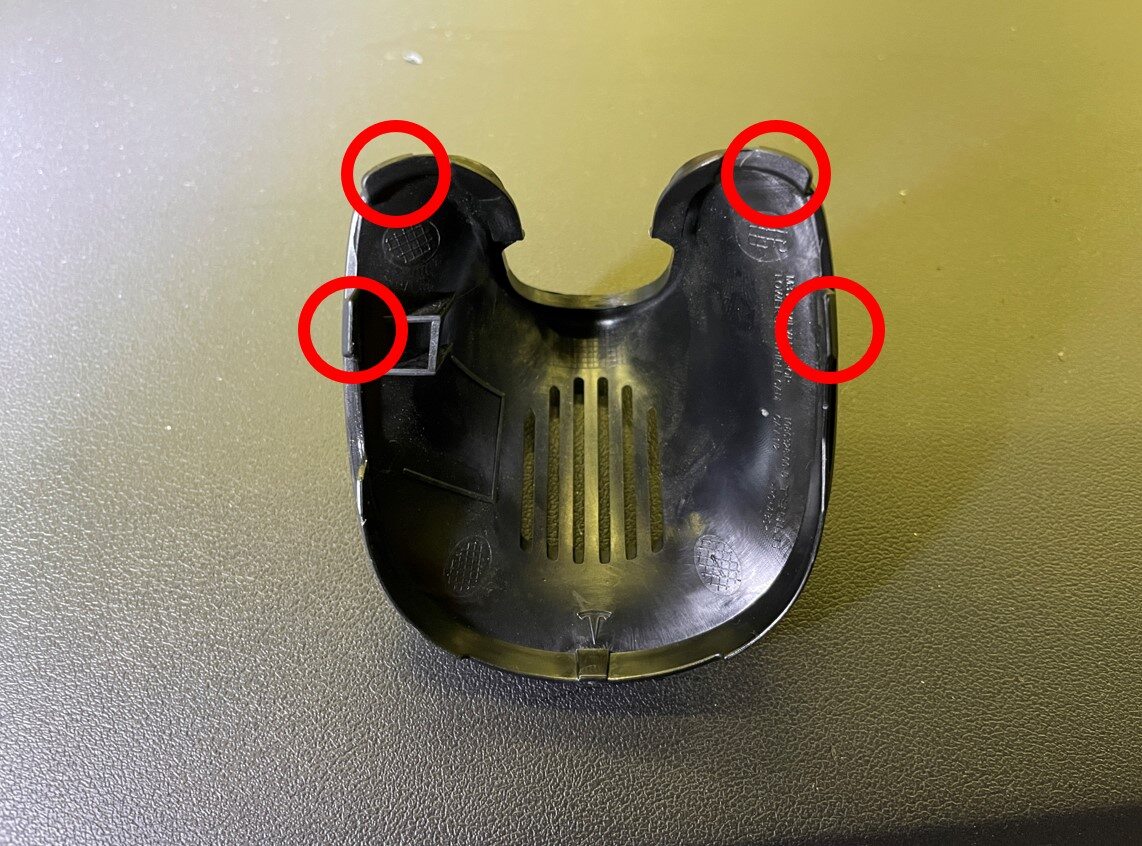

Remove lower quad camera cover

注
4x tabs, Press on the side of the cover with a trim tool to release some of the tabs
Remove tether from lower quad camera cover

注
2x tabs, Depress tabs to remove tether

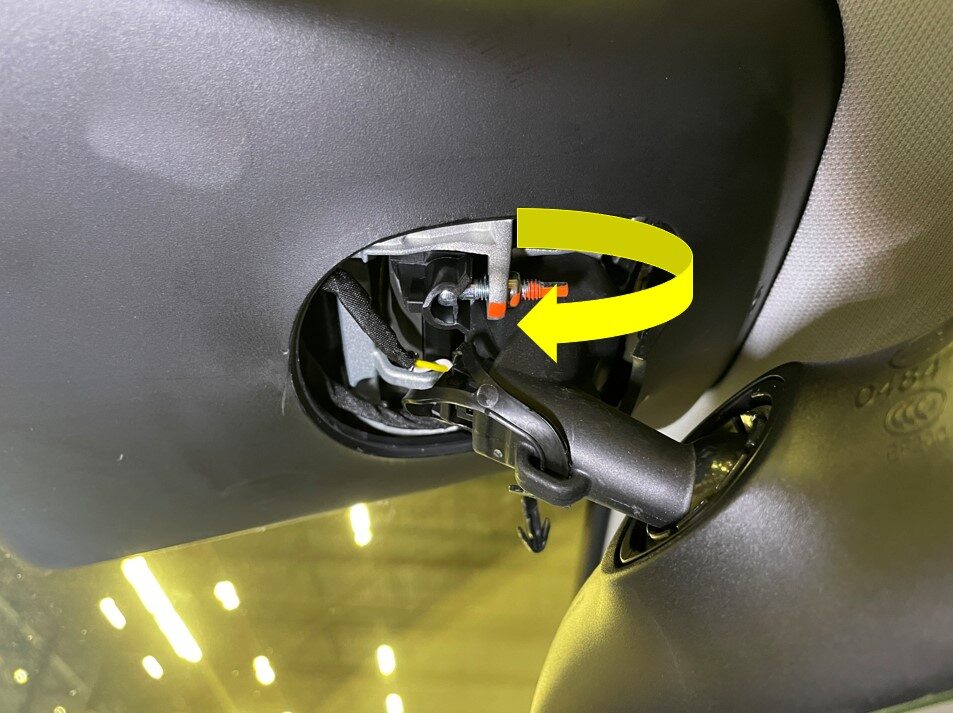

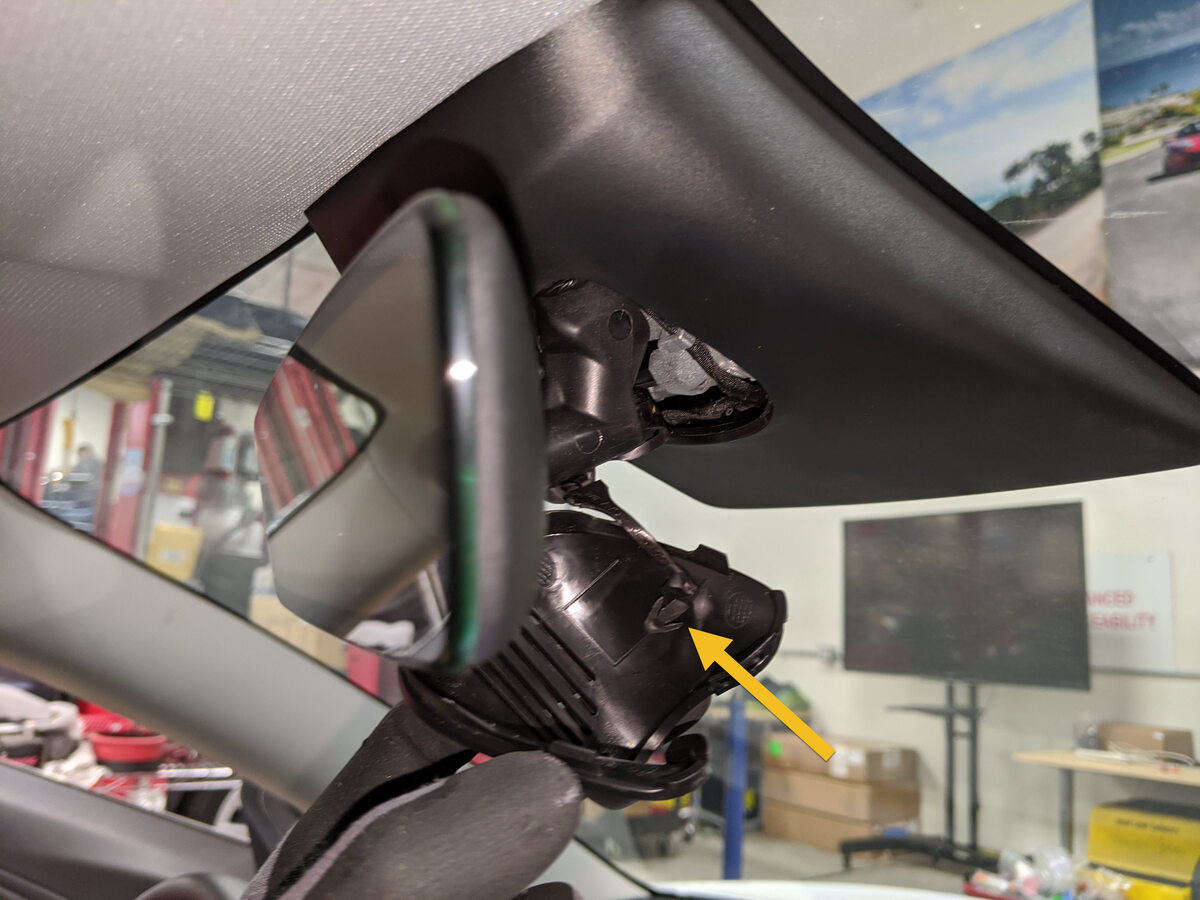

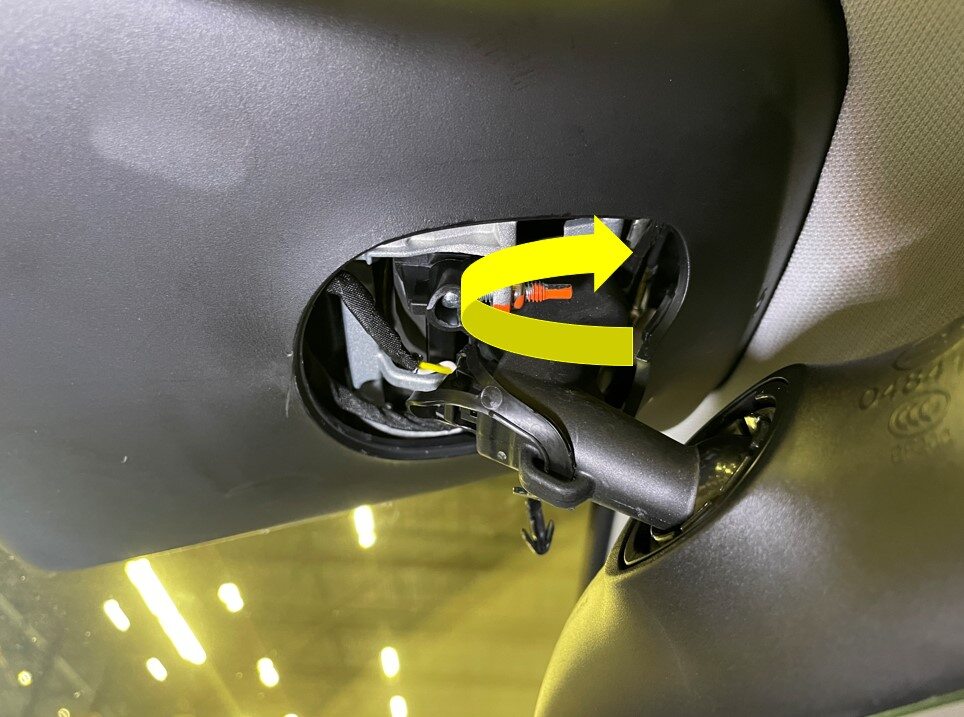

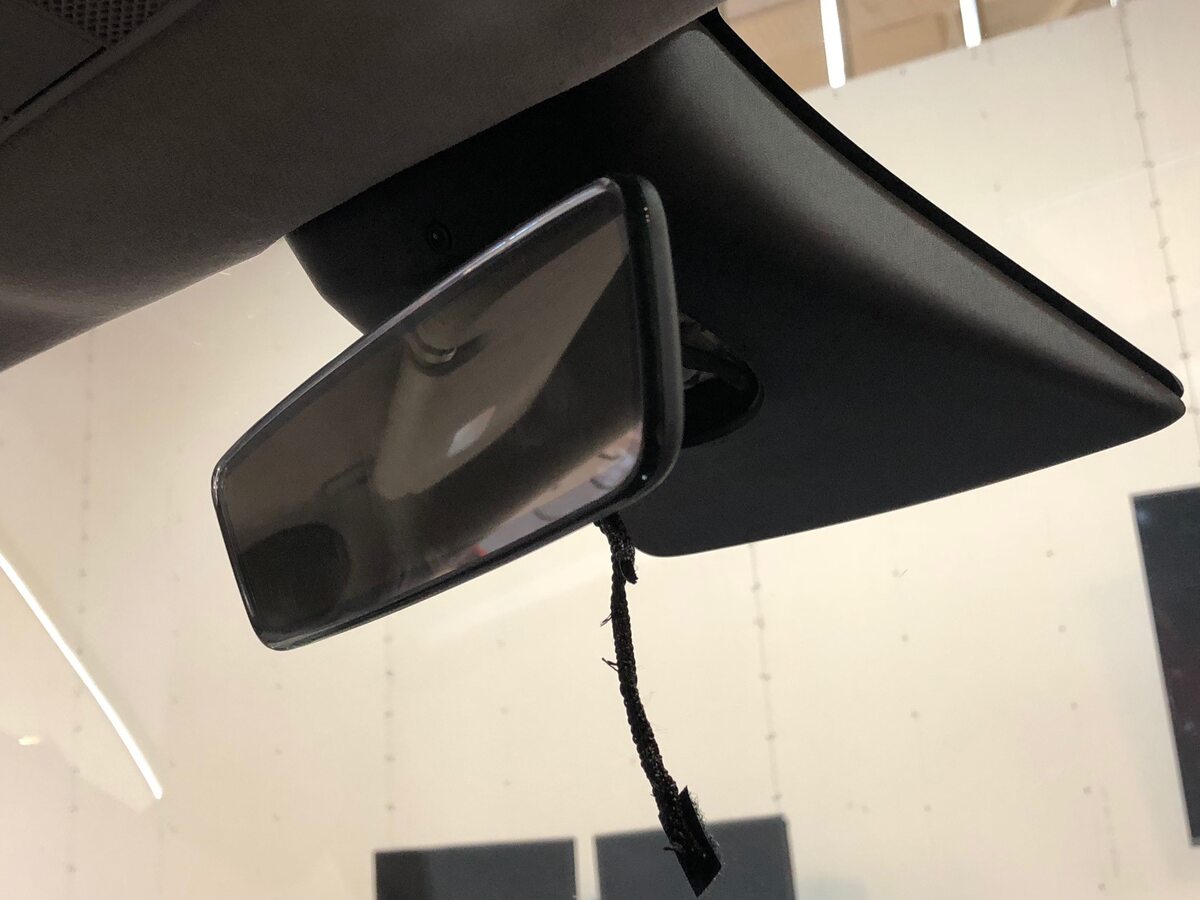

Remove rear view mirror

注
Turn mirror counterclockwise to remove, do not twist by holding the mirror itself, it will separate from the stalk, twist from the stalk connecting the mirror to the mount

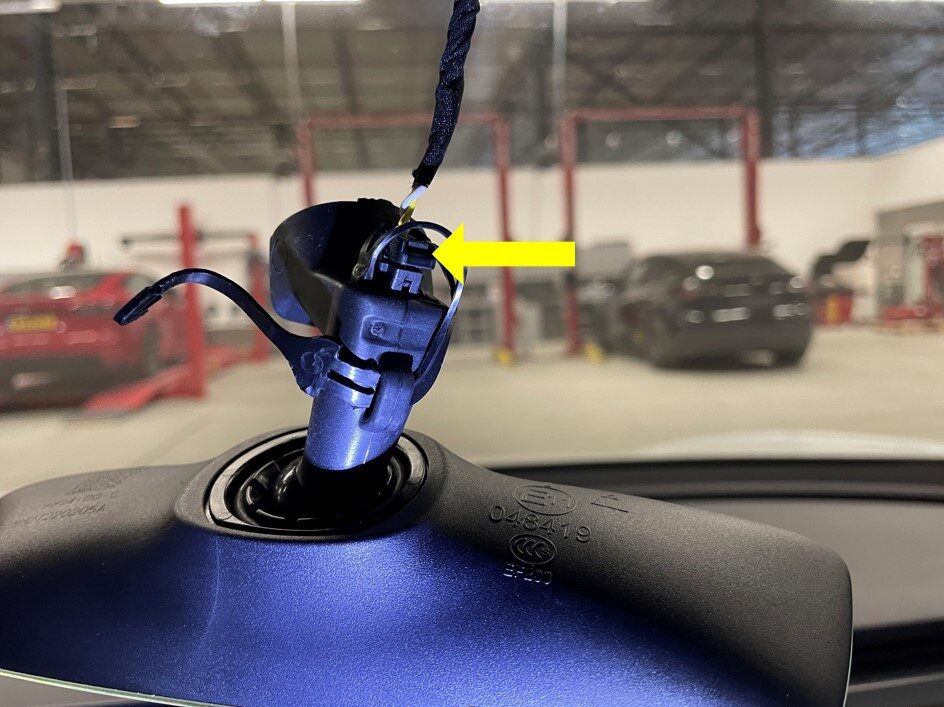

Disconnect rear view mirror

注
1x connector
Move RH front seat backward and seat back downward
Remove RH IP end cap

注
3x clips
Remove RH mid A-pillar assembly

注
1x clip, 1x tab, Release upper clip then pull mid A-pillar upward to remove from vehicle
Remove RH upper A-pillar trim

注
3x clips, Pull inside of the upper portion of upper A-pillar, Remove 3x tether hooks by twisting and pulling away from housing, Then pull upper A-pillar upward to remove
Remove RH sun visor bracket cover

注
4x clips, Extending the sun visor may allow for extra working room

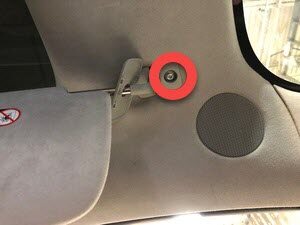

Remove RH sun visor fastener

注
1x screw, T25, 3.5 Nm, Extending the sun visor may allow for extra working room
Remove RH sun visor from headliner
Disconnect RH sun visor connector

注
1x connector

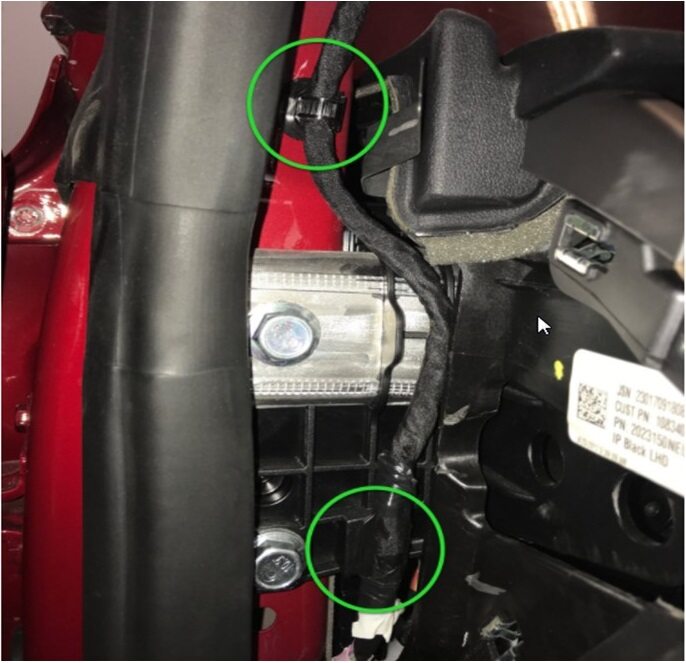

Remove headliner harness clips from LH A-pillar area

注
6x clips

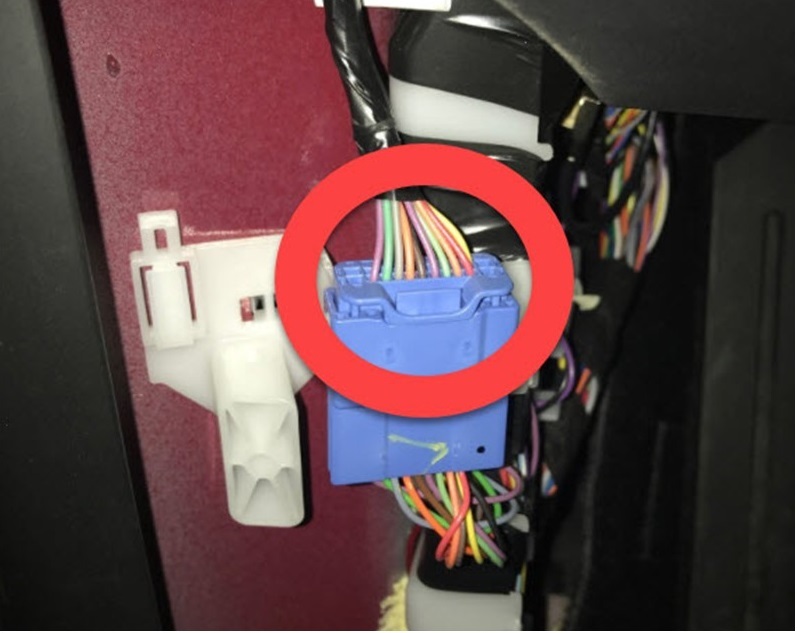

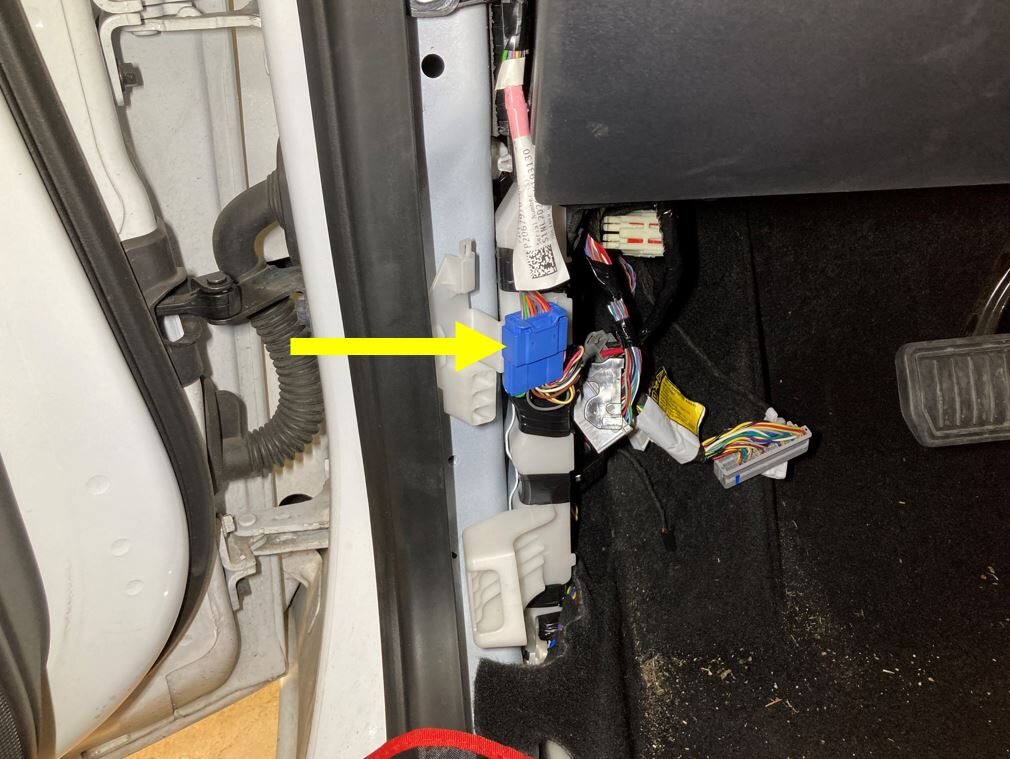

Disconnect headliner harness

注
1x connector

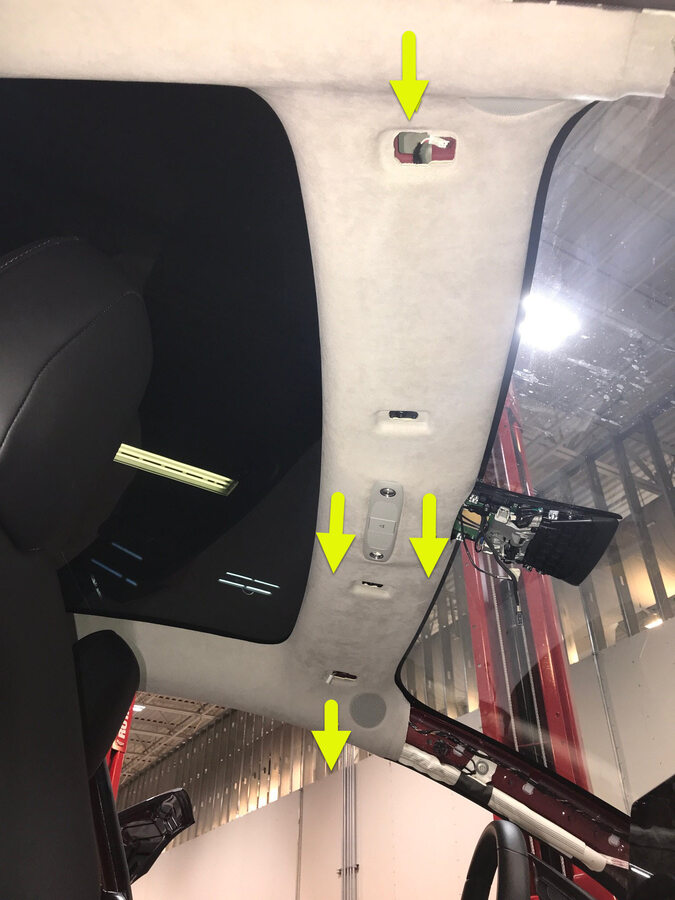

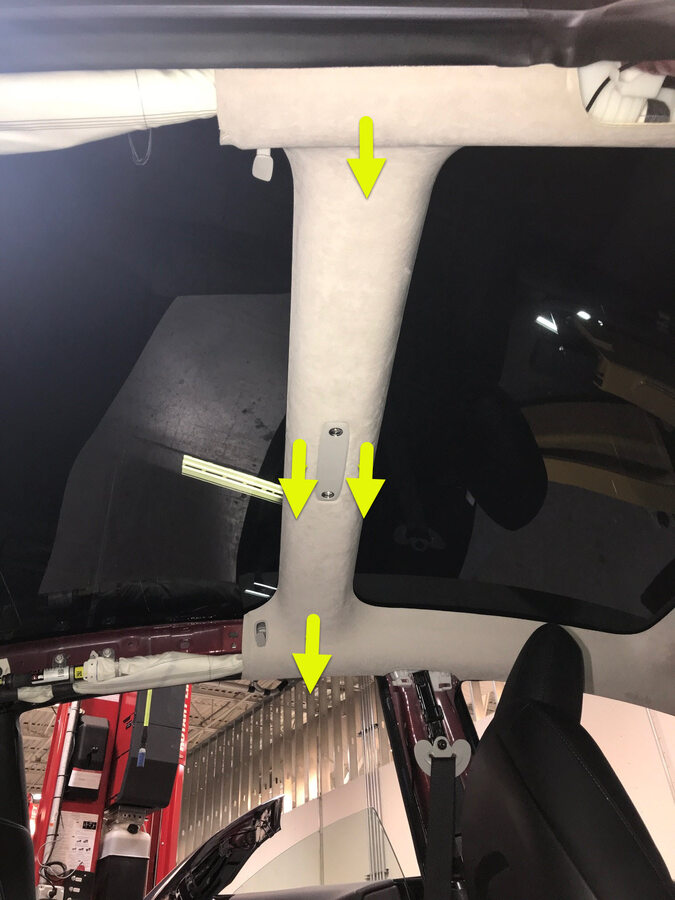

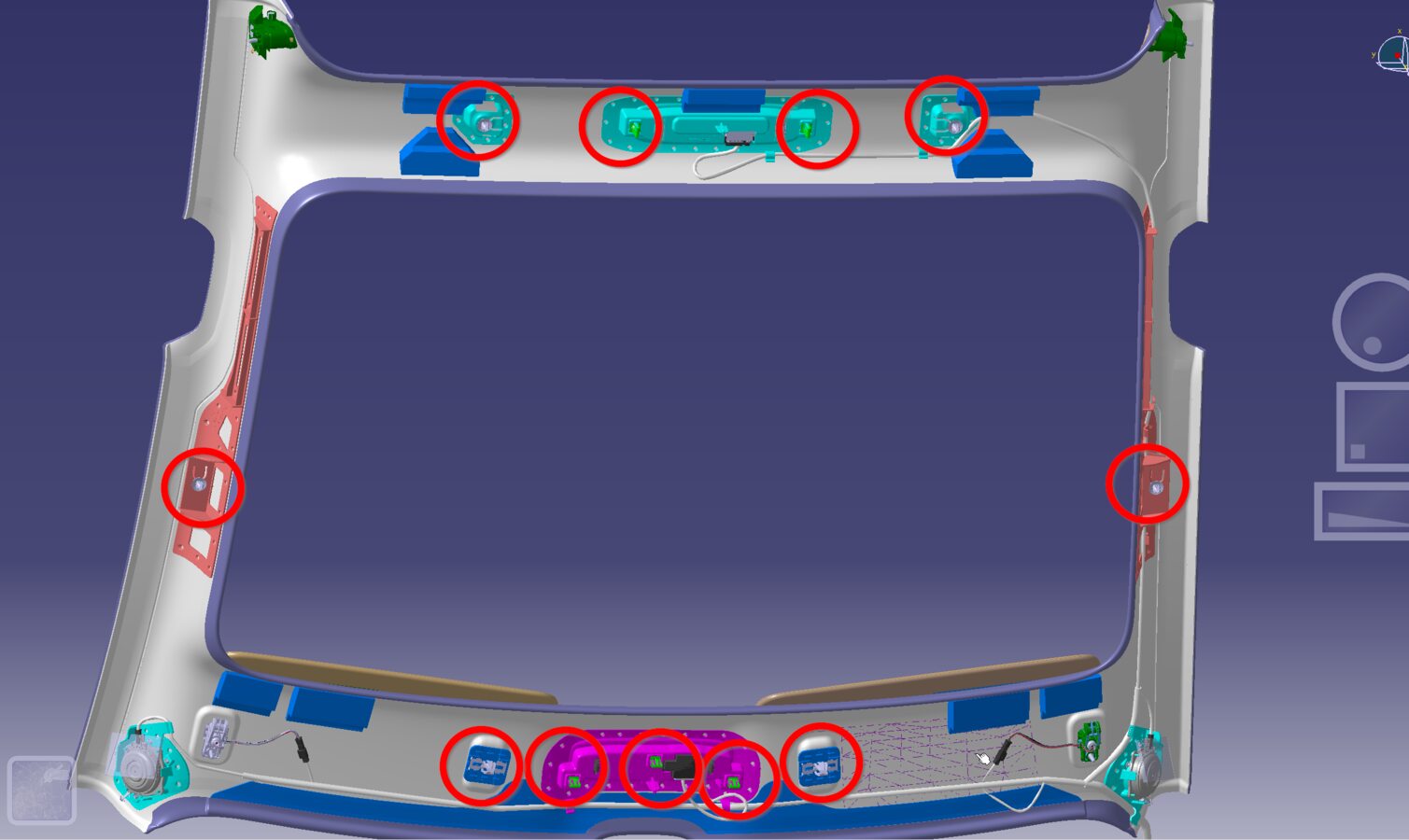

Release headliner from body

注
10x clips, Start by releasing rear portion of headliner then work your way forward to ease removal

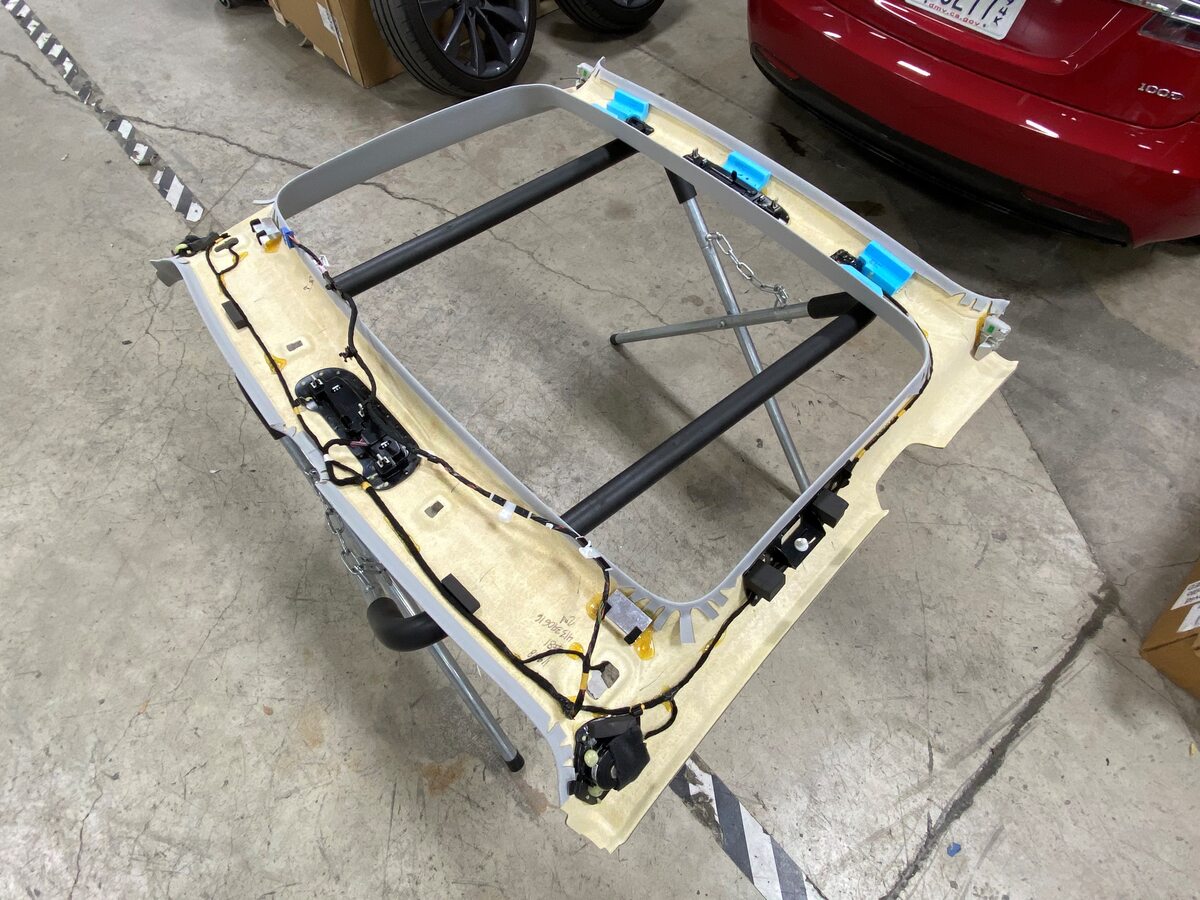

Remove headliner from vehicle

注
Recommend assistance, Remove through passenger front door opening

安装

Position headliner into vehicle for installation

注
Recommend assistance, Install through passenger front door opening
Install headliner to body

注
10x clips, Recommend assistance. EMEA only - If previous FOHC is equipped with e-call, config will require updating
Install headliner harness clips to LH A-pillar area

注
6x clips
Connect headliner harness

注
1x connector

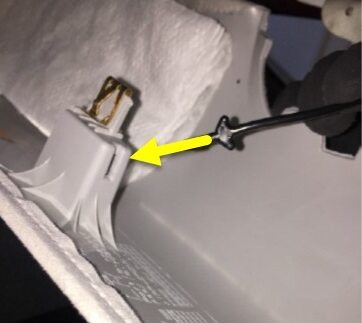

Connect LH sunvisor connector

注
1x connector, Push the connector and wire harness backward. If original sun visor check base is magnetic, install original sun visor, otherwise replace the sun visor to the latest revision (region specific)
Install LH sunvisor onto headliner area

注
Fold sunvisor to the closed and folded down position then latch
Install LH sunvisor fastener

注
1x screw, T25, 3.5 Nm
Install LH sunvisor bracket cover

注
4x clips

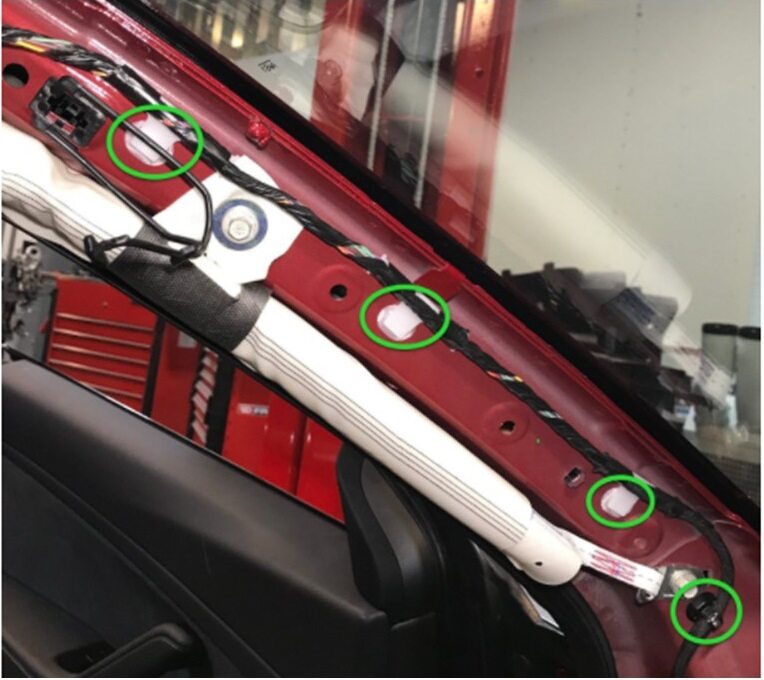

Install LH upper A-pillar trim

注
3x clips, 1x tether, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom and work up, Pull seal over trim
Install LH lower A-pillar trim

注
2x clip, 3 guide tabs, Align the 2 front tabs then align the slot with harness bracket and then push rear clip to secure to lower B-pillar, fully seat seal along trim
Install clip for LH lower A-pillar trim

注
1x push clip
Install LH mid A-pillar assembly

注
1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A-pillar, Pull seal over trim
Install LH IP end cap

注
3x clips
Move LH front seat forward and seat back upward position

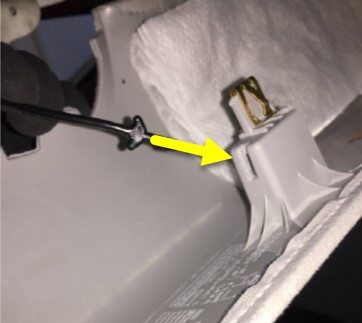

Connect RH sun visor connector

注
1x connector ,If original sun visor check base is magnetic, install original sun visor, otherwise replace the sun visor to the latest revision (region specific)
Install RH sun visor into headliner area
Install RH sun visor fastener

注
1x screw, T25, 3.5 Nm
Install RH sun visor bracket cover

注
4x clips
Install RH upper A-pillar trim

注
3x clips, 1x tether, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom and work up, Pull seal over trim
Install RH mid A-pillar assembly

注
1x clip, 1x tab, Align bottom tab then push on top clip to fully seat mid A-pillar, Make sure seal seat on top of trim
Install RH IP end cap

注
3x clips
Connect rear view mirror connector

注
1x connector
Install rear view mirror

注
Turn mirror clockwise to install, do not twist by holding the mirror itself, it will separate from the stalk, twist from the stalk connecting the mirror to the mount
Install tether onto lower quad camera cover

注
2x tabs
Install quad camera lower cover

注
4x tabs, Install the tabs closest to the rearview mirror assembly and push the cover up to secure
Move RH front seat forward and seat back upward

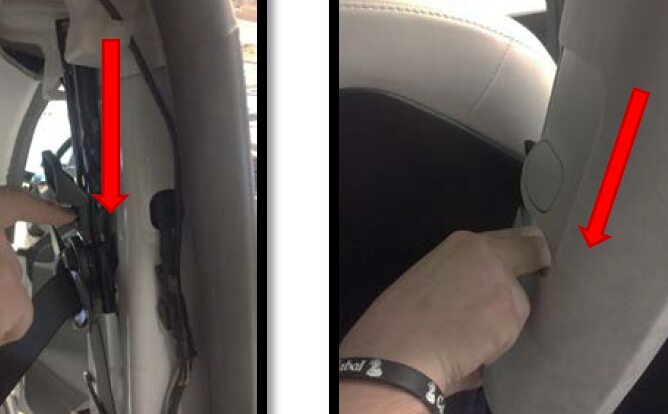

Install the RH upper B-pillar assembly

注
4x clips, Lower the seat belt slider to align it with the B-pillar panel, Insert top portion of upper B-pillar under the headliner to align the clips, Press the bottom to fully seat upper B-pillar to lower B-pillar, Make sure the seal correctly overlaps the trim
Install RH coat hook screw

注
1x screw, T25, 2.5 Nm
Close RH coat hook screw cover

注
2x clips

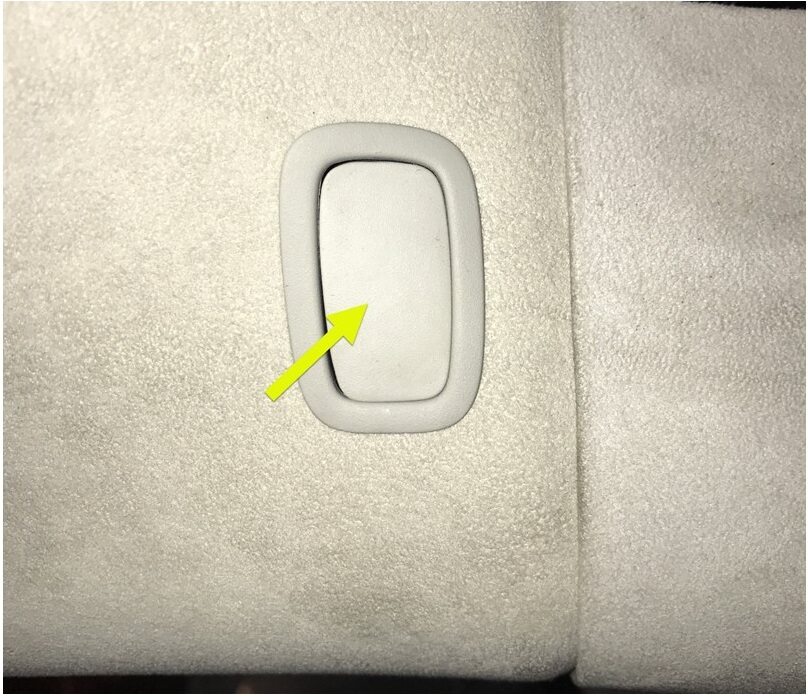

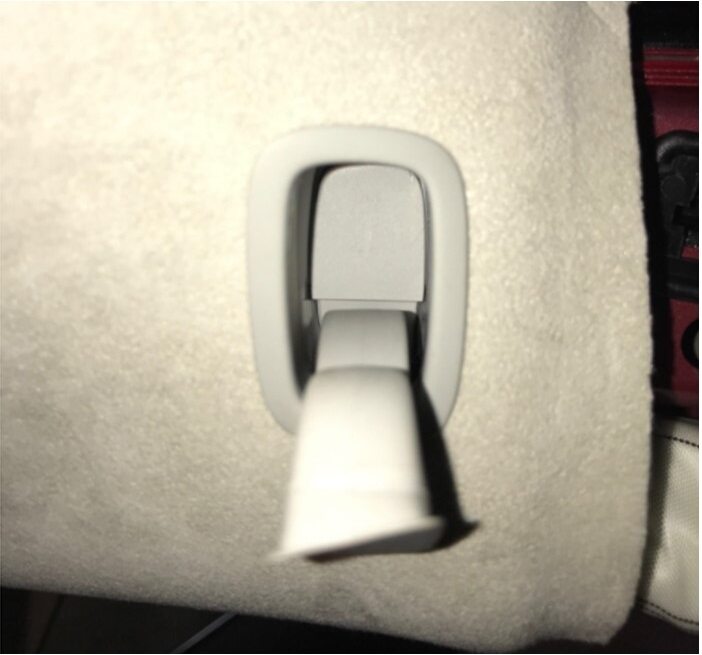

Push RH coat hook closed
Install RH side rail assembly

注

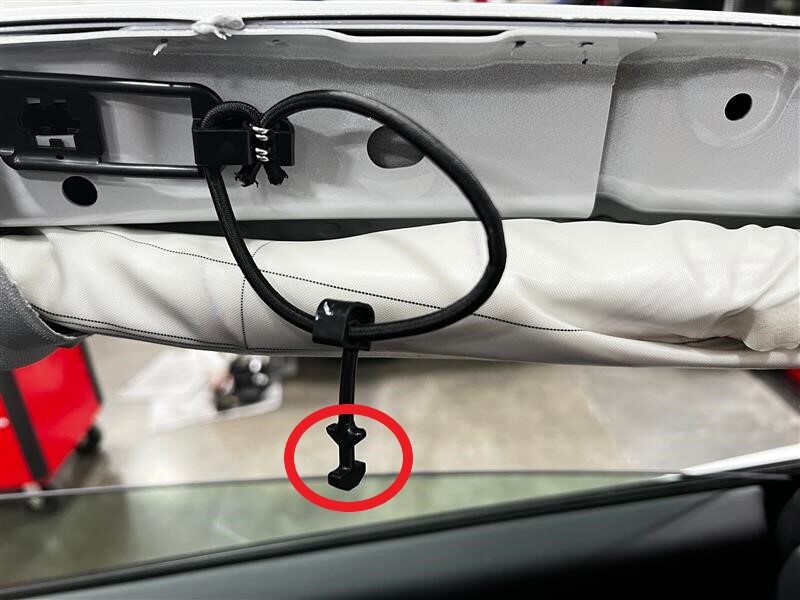

4x clips, 2x tethers, Replace tether if removed from body side, Install 2x tethers hooks to housing, Align the clips from bottom to top then press clips from top to bottom, Align the seal to sit on top of the trim
Move RH front seat to original position

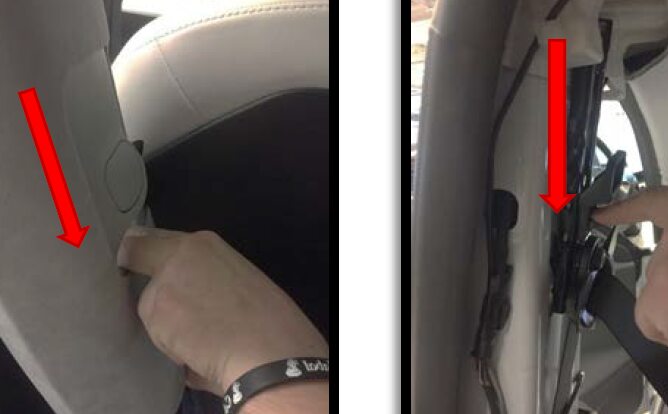

Install the LH upper B-pillar assembly

注
4x clips, Lower the seat belt slider to align it with the B-pillar panel, Insert top portion of upper B-pillar under the headliner to align the clips, Press the bottom to fully seat upper B-pillar to lower B-pillar, Make sure the seal correctly overlaps the trim
Install LH coat hook screw

注
1x screw, T25, 2.5 Nm
Close LH coat hook screw cover

注
2x securing tabs
Push LH coat hook closed
Install LH side rail assembly

注
4x clips, 2x tethers, Replace tether if removed from body side, Install 2x tethers hooks to housing, Align the clips from bottom to top then press clips from top to bottom, Align the seal to sit on top of the trim
Move LH front seat to original position
Raise all windows
Close all four doors
