清洁鼓风机电机

校正代码 18103205 0.24 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

程序

  1. Open the LH front door and lower the LH front window.
  2. Remove the rear underhood apron. See 前备箱挡板 - 后部（拆卸和更换）.
  3. Remove the underhood storage unit. See 前备箱储物单元（拆卸和更换）.

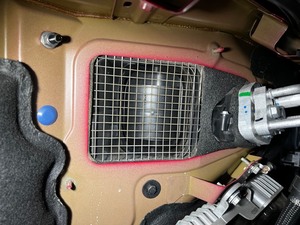

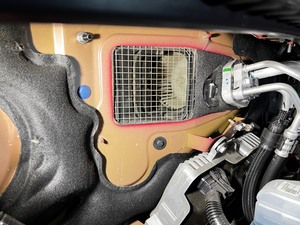

  4. Remove the fresh air intake duct. See 槽 - 新鲜空气进气（拆卸和更换）.

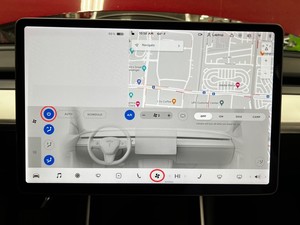

  5. Cycle the HVAC on/off to open the HVAC duct.

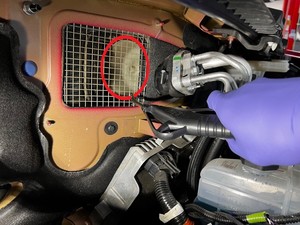

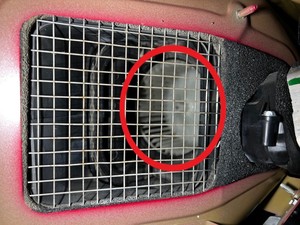

  6. Use a blow gun to blow shop air into the HVAC module assembly to remove dust particles from the blower motor blades.
    Informational PurposesAn informational icon, calling your attention
    注

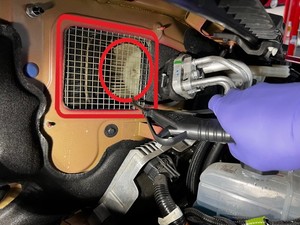

    Remove any loose debris from fresh air inlet seal before using blow gun.
  7. Remove and replace the cabin filter. See 滤清器 - 驾驶室（拆卸和更换）.
  8. Install the fresh air intake duct. See 槽 - 新鲜空气进气（拆卸和更换）.
  9. Install the underhood storage unit. See 前备箱储物单元（拆卸和更换）.
  10. Install the rear underhood apron. See 前备箱挡板 - 后部（拆卸和更换）.
  11. Raise the LH front window and close the LH front door.
