锁扣 - 第二排 - 中间（七座）（拆卸和更换）

校正代码 20057222 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

  • 2023-06-06: Added torque specifications and fixed missing/incorrect steps.
  • 2023-05-10: Rearranged procedure steps and added configuration instructions.

拆卸

  1. Open the rear doors and lower the rear windows.
  2. Remove the LH 2nd row seat toe kick cover. See 盖板 - 脚踢 - 第二排座椅 - LH（七座）（拆卸和更换）.

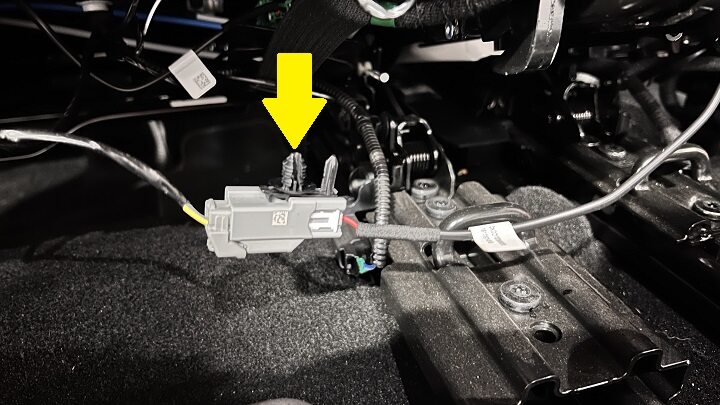

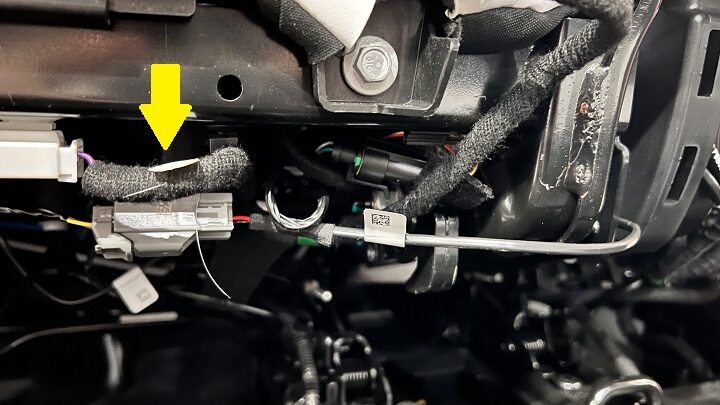

  3. Disconnect center 2nd row buckle electrical connector, and then release the connector from the seat assembly.
  4. Return the LH 2nd row seat to its original position.
  5. Move the RH 2nd row seat forward.

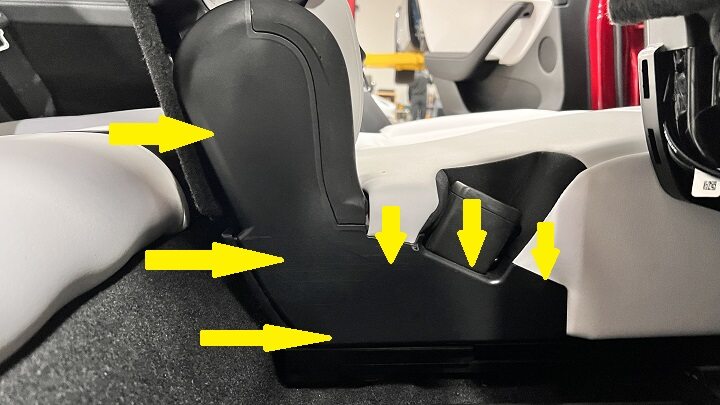

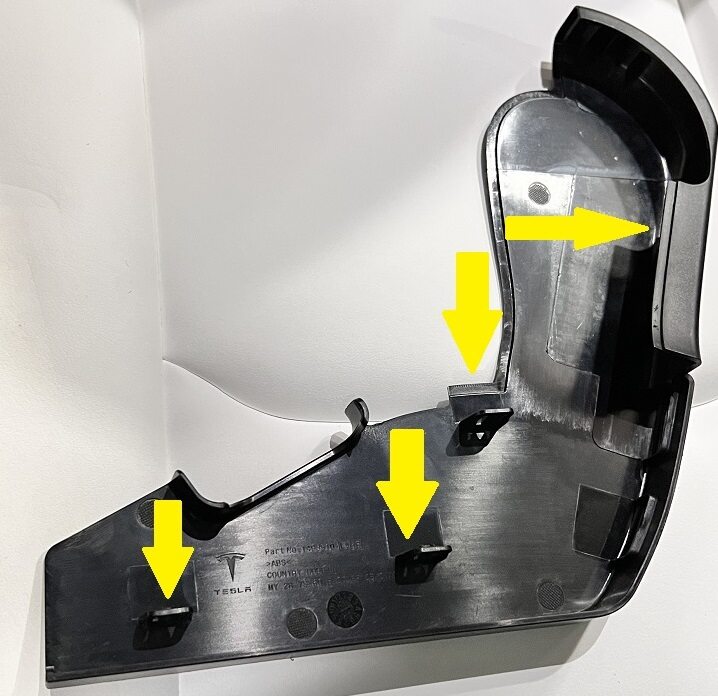

  6. Release the tabs (x4) that attach the RH 2nd row seat back inboard cover to the seat assembly.
    提示： Release the front portion first, and then slide the cover straight rearward to clear the groove.

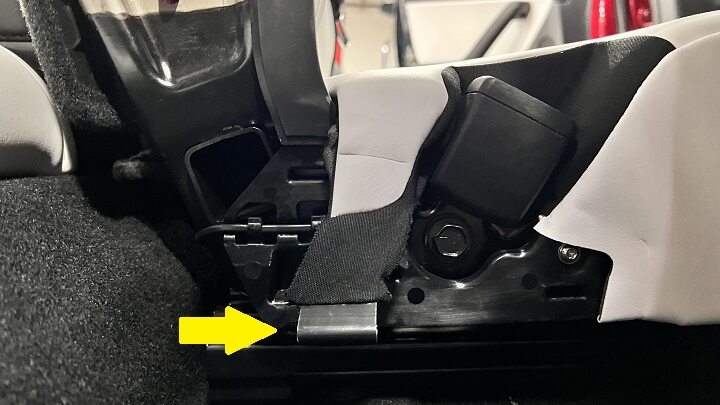

  7. Release the edge clip that attaches the cushion cover to the seat back assembly.

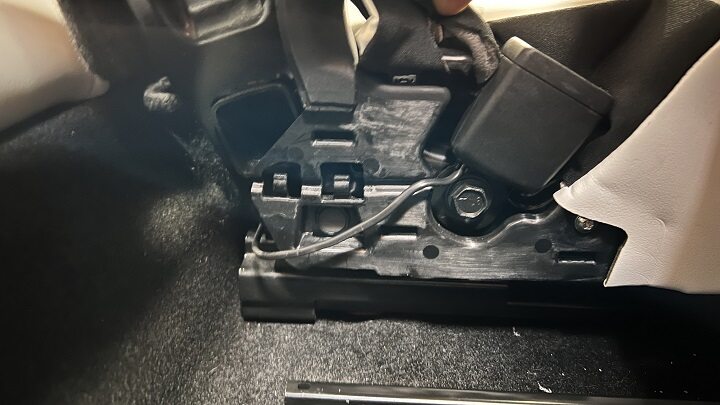

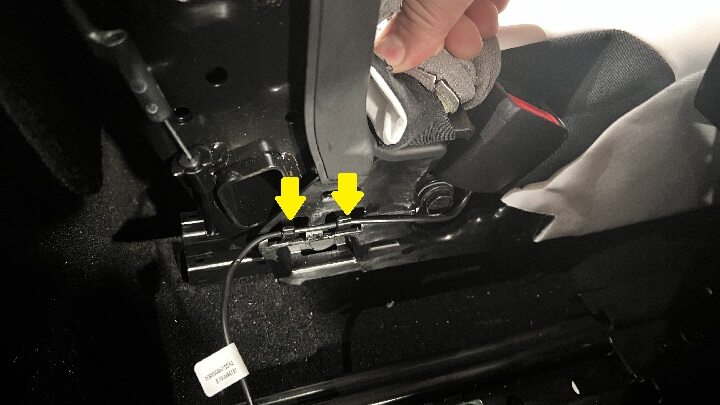

  8. Release the 2nd row center buckle harness from the LH seat back assembly.
  9. Remove and discard the bolt that attaches the center 2nd row buckle to the seat assembly, and then remove the buckle from the assembly.
    40 Nm (29.5 lbs-ft)
    提示： 推荐使用以下工具：
    • 15 毫米套筒

安装

  1. Position the center 2nd row buckle to the seat assembly, and then install a new bolt that attaches the buckle to the assembly.
    40 Nm (29.5 lbs-ft)
    提示： 推荐使用以下工具：
    • 15 毫米套筒
  2. Install the center buckle harness onto the LH seat back assembly.
  3. Install the edge clip that attaches the cushion cover to the LH 2nd row seat back assembly.

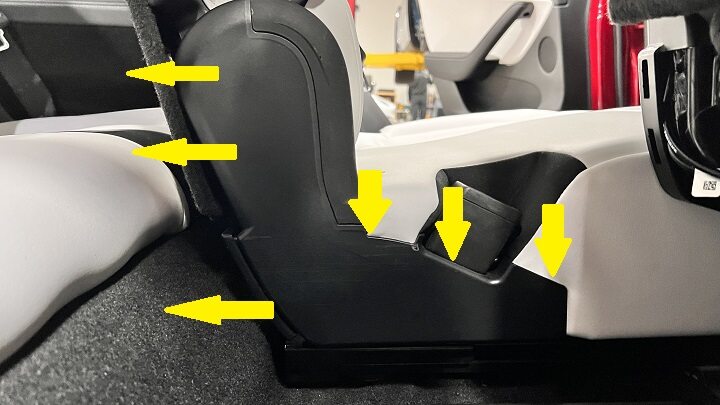

  4. Position the LH 2nd row seat back inboard cover onto the seat assembly, slide the cover forward into the grooved section, and then secure the tabs (x4).
  5. Move the LH 2nd row seat forward.

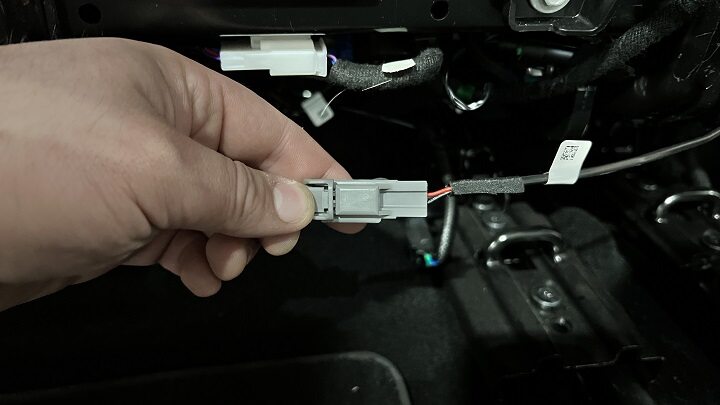

  6. Install the center 2nd row buckle connector onto the seat assembly, and then connect the connector.
  7. Install the LH 2nd row seat toe kick cover. See 盖板 - 脚踢 - 第二排座椅 - LH（七座）（拆卸和更换）.
  8. Move the 2nd row seats to the original positions.
  9. Raise rear windows and close rear doors.
