接地线缆 - 高压电池（拆卸和更换）

校正代码 16100022 0.48 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。 注意：执行下述程序时，请参阅人员保护确认已穿戴适当的个人防护装备 (PPE)。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
尽管此程序已经过验证，但仍是一个草案。可能没有警告和注意事项。请遵守安全要求，处理或靠近高压系统和部件时，请谨慎操作。请将校正修理内容及反馈发送至ServiceDevelopment@teslamotors.com。

拆卸

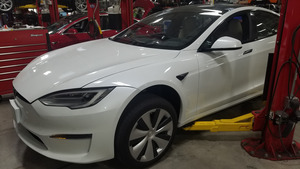

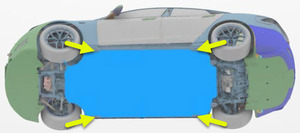

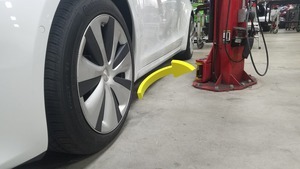

  1. Raise and support vehicle.
    Informational PurposesAn informational icon, calling your attention
    注
    Set air suspension to "Jack Mode".

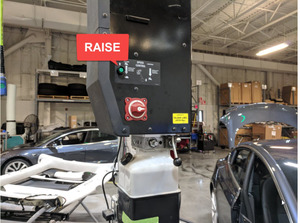

  2. Raise vehicle fully and lower lift onto locks.
    Informational PurposesAn informational icon, calling your attention
    注
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side.

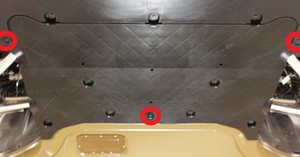

  3. Remove clips securing front aero shield.
    Informational PurposesAn informational icon, calling your attention
    注
    5x push clips.

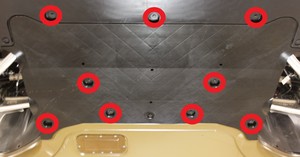

  4. Remove bolts securing front aero shield and remove from vehicle.
    Informational PurposesAn informational icon, calling your attention
    注
    9x bolts, 10mm, 6 Nm.

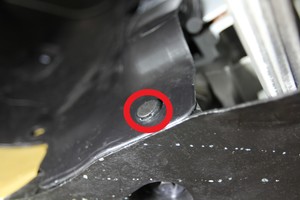

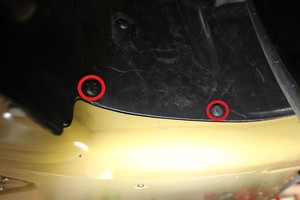

  5. Release clips securing wheel house liner to front skid plate.
    Informational PurposesAn informational icon, calling your attention
    注
    4x clips.

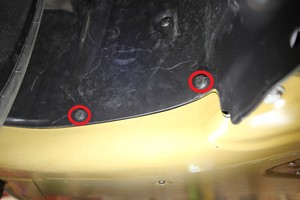

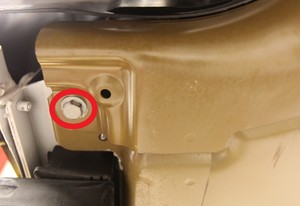

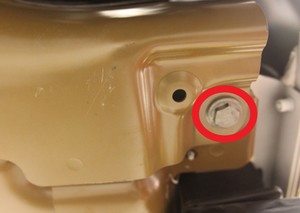

  6. Remove bolts securing front skid plate to body sill.
    Informational PurposesAn informational icon, calling your attention
    注
    2x bolts, 15mm, 30 Nm.

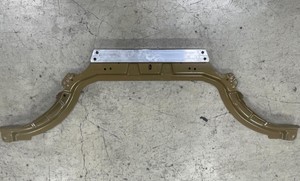

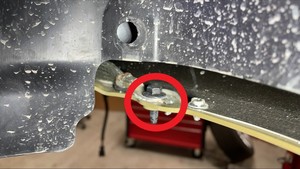

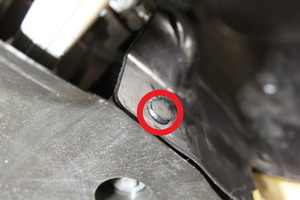

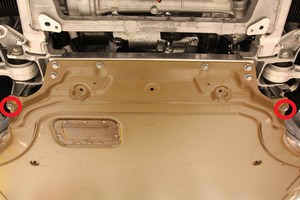

  7. Remove bolts securing front skid plate to body casting.
    Informational PurposesAn informational icon, calling your attention
    注
    2x bolts, 15mm, 60 Nm.

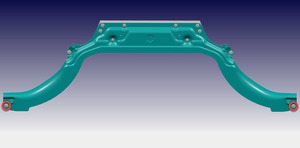

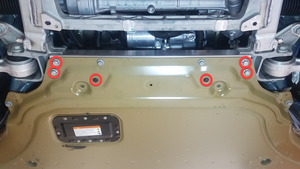

  8. Remove bolts securing front skid plate to front subframe and remove skid plate.
    Informational PurposesAn informational icon, calling your attention
    注
    4x bolts, 15mm, 70 Nm, 2x bolts, 10mm, 10 Nm.

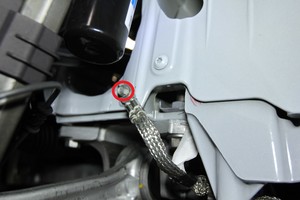

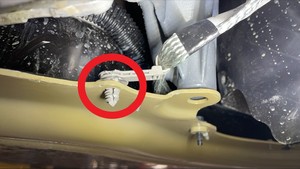

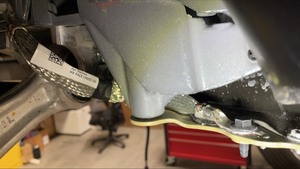

  9. Release bolt securing ground strap to body.
    Informational PurposesAn informational icon, calling your attention
    注
    1x bolt, 10mm, 9 Nm.
  10. Release clip securing ground cable to battery.
    Informational PurposesAn informational icon, calling your attention
    注
    1x clip.
  11. Remove bolt securing ground cable to HV battery and remove assembly.
    Informational PurposesAn informational icon, calling your attention
    注
    1x bolt, 10mm, 10 Nm? torque.

安装

  1. Route and install bolt securing ground cable to HV battery .
    Informational PurposesAn informational icon, calling your attention
    注
    1x bolt, 10mm, 10 Nm? torque.
  2. Install clip securing ground cable to battery.
    Informational PurposesAn informational icon, calling your attention
    注
    1x clip.
  3. Install bolt securing ground strap to body.
    Informational PurposesAn informational icon, calling your attention
    注
    1x bolt, 10mm, 9 Nm.
  4. Position front skid plate for installation and thread in all bolts .
    Informational PurposesAn informational icon, calling your attention
    注
    4x bolts, 15mm, 70 Nm, 2x bolts, 15mm, 60 Nm, 2x bolts, 15mm, 30 Nm, 2x bolts, 10mm, 10 Nm, Torque at later step.
  5. Torque bolts securing front skid plate to body casting.
    Informational PurposesAn informational icon, calling your attention
    注
    2x bolts, 15mm, 60 Nm.
  6. Torque bolts securing front skid plate to body sill.
    Informational PurposesAn informational icon, calling your attention
    注
    2x bolts, 15mm, 30 Nm.
  7. Torque bolts securing front skid plate to front subframe.
    Informational PurposesAn informational icon, calling your attention
    注
    4x bolts, 15mm, 70 Nm, 2x bolts, 10mm, 10 Nm.
  8. Secure clips securing wheel house liner to front skid plate.
    Informational PurposesAn informational icon, calling your attention
    注
    4x clips.

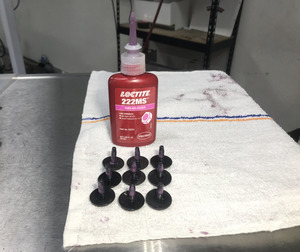

  9. Apply Loctite 222 onto front aero shield bolts and install fasteners securing front aero shield to vehicle.
    Informational PurposesAn informational icon, calling your attention
    注
    9x bolts, 10mm, 6 Nm.
  10. Install clips securing front aero shield.
    Informational PurposesAn informational icon, calling your attention
    注
    5x push clips.
  11. Lower vehicle fully.
    Informational PurposesAn informational icon, calling your attention
    注

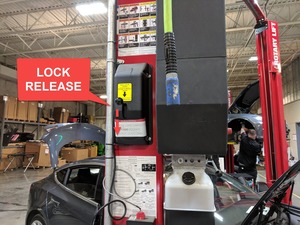

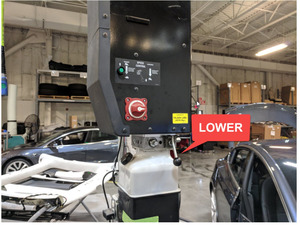

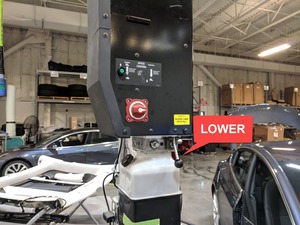

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered.
  12. Remove vehicle from lift.
    Informational PurposesAn informational icon, calling your attention
    注
    Lower rack arms fully and remove them from under vehicle, Remove air suspension from "Jack Mode".
