饰板 - 掀背尾门（全球）（拆卸和更换）
校正代码
12207022 0.12
注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。
注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。
注意：执行下述程序时，请参阅人员保护确认已穿戴适当的个人防护装备 (PPE)。
注
本程序适用于此零件的全球更新版本。此零件的原始版本对应的程序如下：
饰板 - 掀背尾门（拆卸和更换）.
拆卸
-

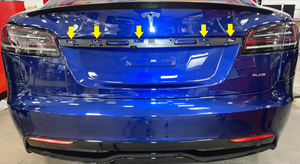

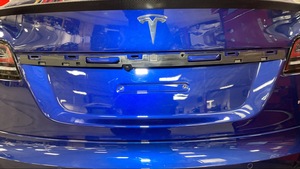

Carefully release the clips (x5) that
attach the liftgate applique to the liftgate, and then remove the applique from the
vehicle.
注Use a plastic trim tool to release the clips.
安装
-
Clean the mating surfaces of the
liftgate applique with an Isopropyl Alcohol (IPA) wipe.
注Clean away any residue.注Use your thumb to help roll off the adhesive.注Allow 1 minute for the IPA to dry before continuing to the next step.
-

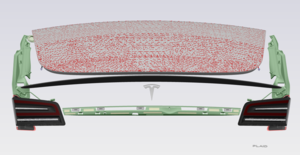

Install the applique tape onto the
applique bracket.
警告Be wary not to cover the rear facing camera.注Peel away the tape when the liftgate applique is to be installed
-

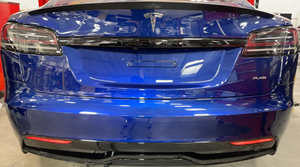

Install the liftgate applique.

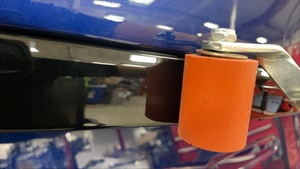

注x5 clips.注Peel away the tape when ready to install the applique.注Align the applique using pin. Start by fastening the center clips, and then work your way out.注Use the seam roller to seat the adhesive areas.
